Flooring Install Part 7 | Livestream Shop Cam
2K views
May 2, 2025
Have questions? Ask in the Chat! Join me on this livestream as we install electrical wiring under floor. Whenever you’re ready, there are 2 ways we can help you: 1. If you need a vetted parts list, download our → FREE DIY Van Build Cheatsheet to help you save time and money on Van Parts and Gear: CLICK HERE: https://van-builder-hq.ck.page/846c83ab54 2. If you want to get Done-For-You Van Build help, book a → FREE Consultation with my Calendly Link: CLICK HERE: https://calendly.com/odysseycustomvans/intro-call?month=2023-07
View Video Transcript
0:01
[Music]
0:15
thank you [Music]
0:27
foreign [Music]
0:54
foreign [Music]
1:33
thank you hey everyone welcome to the next part of the live stream tonight we're going to
1:39
work a little bit on the wiring so what we're going to do is uh this
1:46
kind of part two for the day we did a live stream about an hour ago and we were talking about this
1:53
so we talked about what we did earlier which was we cut a path
1:59
into the foam right here so we needed to the rear of the van is was just not able
2:06
to hold the amount of wires we needed and we've we lost both of our additional
2:12
pass that we could have used one because right here this is where the shower pan goes in the
2:18
van and you see this van seam right here so that is a channel that can be used
2:25
just by default to run wires underneath the van however that's the first place you can
2:30
go we can't use that because the shower pan is going there the next place that you can go is right
2:38
about I think it's right about right here challenge with that is we have the
2:43
heater in the pathway right there so we decided
2:49
um I'm sorry not the heater we had this the end of the pull out drawer it was
2:58
perfectly where the pull out drawer bolts ended was right where our next opportunity to
3:05
have a under the floor path for wires was so couldn't use that one
3:10
so we use the rear of the van and the rear of the van was able to take care of all of our control wires for our wabasto
3:18
heater our victron battery management um
3:24
and our renergy one system so all those communication wires went
3:30
there so if you run out of room you gotta cut
3:35
into the foam that's what we did I thought since um you guys are doing
3:41
your own van or if you're watching this and you are doing your own van uh this is a perfect opportunity to show
3:48
you that even though you got a plan you got everything laid out um there's just one part that you're
3:54
going to need to modify and it's okay it's okay to cut through something that you already had pre-planned because I'm
4:01
doing it right now so I just want to show you this is live we've been doing this every single night sometimes two times a night
4:08
so you guys you get to see things how they they come up and so this is this is
4:13
real van building right here we needed to make arrangements to add four more wires
4:18
and we're doing that right here tomorrow I've got to go to the store and
4:25
I've got to pick up two wires that I do not have with me tonight so this is a 14
4:30
gauge wire with the the receptacle built on the end of it
4:39
we talked within the past live stream that receptacle with n is going to be
4:45
used for our water heater and for the flex space area which can
4:50
either hold like a microwave or be used as the power if you want to do an built-in induction stove
4:59
the other two items that we're going to be doing are these pop-up I'm going to
5:04
pull them up here from Amazon and I just got these I've been looking
5:10
around uh pretty extensively for these pop-up Outlets
5:16
if you okay let's go look at a computer and let me try to
5:21
get this on my face just a little bit there we go
5:27
so if we look on the computer this is the outlet that I'm talking about and for some reason oh so I'm gonna
5:34
change my there we go
5:40
so this one is a great price 45 bucks some might say this is high but check
5:45
this out if we go to uh let's see here
5:51
if you go to pop-up floor outlet box and let me go back here if we search for
5:58
this
6:22
if you type in water resistant box which is what I was trying to go for
6:29
you there's this one and it's 305 dollars for this pop-up
6:36
electrical box um which is pretty crazy
6:42
uh so this is waterproof but I wanted something that was you know water resistant because we're not going to
6:48
have something like a complete downpour on it and that is where I sell these on Amazon
6:56
so I didn't get this brand I got a different brand
7:03
because I don't like how this is kind of like an oval shaped I wanted more of a square shape
7:08
so this one let's see here
7:19
so I went with that one that I just showed you where'd it go
7:25
this one so this one's nice it's got square angles it's nickel finish
7:30
it's got a nice circular button it doesn't have like a little plastic one even though it's a weird name brand
7:36
everything else looks really good this is typically used for like kitchen
7:41
counters so it does have a foam gasket right there
7:48
and I think it'll be suitable for I want to have it as the top of the kitchen Galley so that you can pop this up you
7:55
can put your induction stove stuff like that and you can use this there and then also
8:02
you can use it for the outside of the van and the way I'm going to mount it is
8:08
it'll be facing down that way when you pop it out it'll have like a little hood and that'll protect it from you know
8:15
like say it's just misting outside and you're trying to you know unplug everything before you get back in the van it would be protected
8:23
what was really cool is I'm getting the one that's 15 amp with a USB outlet
8:32
um I did not want it to be tamper resistant but I think the options only allow you
8:37
to do 15 amp USB or the uh so I went with the USB outlet
8:42
so that you could you know run the induction stove charger phone at the same time so there's two of these in the
8:48
van so we've got our two receptacle plugs plugins built in which is it's
8:55
essentially an extension cord that's for the water heater and the microwave
9:01
location or the flex space I'm calling it and then we're going to have two of these
9:06
boxes one on top of the kitchen Galley one outside at the bottom like the foot
9:13
foot step in the for the van okay so I got those two coming on the
9:19
way some other stuff that is electrical that is electrical item
9:29
I'm stumbling to my words the working on this really trying to stick to this timeline has just worn me out so I
9:36
appreciate everybody that's uh sticking with me on the live stream all the nice comments support I need I
9:42
need all of it um
9:48
let's see here there's a couple other things
9:57
yeah let me take my orders
10:04
uh the next thing I got is I went in since we're talking about electrical cables I know this is not electrical
10:09
cable but I got these one foot cables for the renergy smart batteries
10:15
so there's a link output port and we're going to need to link each battery together so that's how they all
10:21
talk to each other and then there's one main Uplink that goes to the uh
10:28
this will go to the main hub and then that will allow us to uh
10:35
communicate with the the main renergy one system
10:42
there's really not a lot of information about the the smart batteries so hopefully I can do a tutorial and help
10:47
you guys out but I've ordered a bunch of one foot cables and then a two foot cable for the renergy Hub
10:55
and then we got a couple other things here um we are going to try a solar panel that I
11:01
haven't tried before but I think it's got excellent ratings
11:08
I have heard a couple of channels talk about new power with a
11:14
this panel is going to perfectly fit between the max fan and the Dometic RTX
11:21
2000 AC unit it is very challenging to find a solar panel
11:26
that can maximize the real estate on the roof
11:32
that is not a 100 watt panel because two 100 won't fit that so this
11:39
is perfect it's 220 Watts so when we get finished with this
11:45
project up there where this stuff comes in we will have 420 Watts we're doing
11:50
two 100 watt renergy panels and the front they're going to be
11:56
flanking the uh to the left and the right of the max Fin and then the behind the max fan and in
12:02
between the Dometic is going to be this uh 220 watt panel and the specific dimensions which are
12:09
perfect 56.69 inches wide I guess tall technically and then 30
12:17
inches wide so our Dimensions we have 58 inches wide
12:23
that's how much room we have to work with and then we have 32 inches I'm sorry 58 inches tall 32 inches wide
12:31
so this is going to be excellent
12:37
and I think that is about it for our electrical stuff now we're just going to dive right into this video get working
12:44
here
12:52
all right let's do it so come on into the van actually we are
12:59
going to work on uh we're pulling wire essentially so
13:05
let's go back to this let's go back to this photo real quick
13:22
all right so let's talk about this photo this is what we did in the previous video so we cut this
13:30
so I just talked about that and now what we're going to do is we're going to start pulling wire
13:35
we're going to do the RTX 2000 wire pull because I've already got that set up
13:41
I'll talk to you about that we're going to do the um two 120 volt pools for that the wire
13:51
that we have and then we'll see if we have time to do the ones for the USB ports
13:57
and if you guys had any questions you know make sure you put those in the comments below and I'll be happy to
14:03
answer them but let's go ahead since we are let's see here
14:09

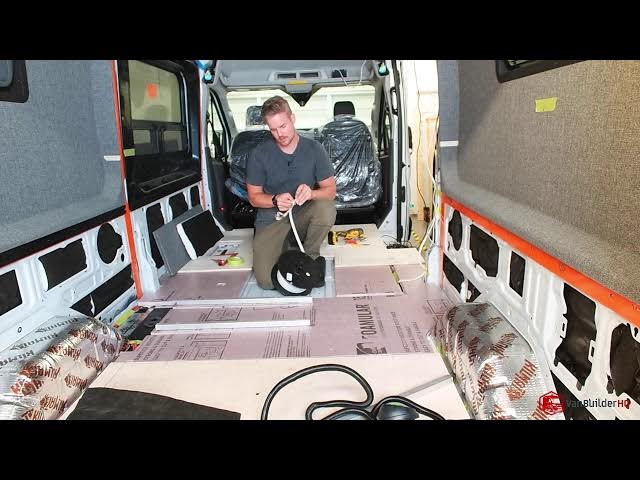

get the camera going we're going to back up a little bit so if you guys have ever used uh fishing
14:16
wire or fishing cable to fish something through
14:24
that's what we're using right now fish tape hahaha oh man
14:31
let me tell that I am sleep to private this moment
14:38
okay so let's change our lighting really quick there we go
14:45
okay so this is the cable that comes with the Dometic RTX 2000
14:52
so if you have the 12 volt you're going to have this thicker one if you have the 24 if you're running off of 24 volts
14:57
there's a different cable it's much skinnier at the top of this cable I was able to
15:04
there's a special connector
15:15
so it looks like this right here
15:22
and so you can depress both pins the pin here and a pin here on the inside
15:27
you can use like a piece of wire or some tool this is the tool that I used just like a
15:34
little Precision screwdriver and I depressed the pins in here
15:39
and then it un clicked it and came out this uh so the challenge that I'm running with right now is I'm trying to
15:47
get um I think my challenges are definitely
15:54
going to benefit you guys if you're in a DIY build because the eventual acting is actually making
16:00
it very challenging to wire anything over the roof I have very little space
16:06
to run the wires because of the A-frame structure that's riveted in the van
16:11
the second issue is by the way I love Adventure wagon and I would I'm going to
16:16
continue to to use this as much as I can but now that I know all of these when you rivet the yellow
16:25
steel pieces into the van you close up a lot of access holes in the van
16:30
especially in the back there's there's one big opening here and one big opening here for the door hinges
16:37
not the door hinges what is that for
16:44
it's an opening these two openings right here you have access to run and pull
16:50
wire just as you do in the top so when you rivet these still pieces in
16:56
they blank those off and they cut them off and they also cut off ones here so you're kind of limited to now where
17:03
you can run wire that's why we're doing everything in the floor
17:09
now if you want to do you know like a one or two USB wire runs
17:15
okay you can probably do that because the the channels right here that are
17:21
upholstered they're at such an angle to where they have about a half inch by half inch opening and you can run wire
17:27
behind here uh it's actually a good thing because then you have accessibility if you wanted to pull that
17:33
off do maintenance maybe replace or pull something else so with that being said I attempted to
17:41
take this cable and it's thin enough to go behind that
17:47
piece of here I'll just get a piece
17:54
so this is the upholstered panel and so all this does
18:00
as it goes in place right here so it cleans all that
18:06
up the channel right there as you guys can see this part right here
18:13
the van actually goes here and kind of goes up so this is there's a void right
18:19
here about half inch by half inch void so I attempted to put the wire in there
18:25
and zip tie it and it would not allow me to actually come in and close in this back section
18:32
that's where the L truck goes and l-track holds all these panels in place so if you can't get it in place and have
18:38
the L truck to hold it then you have to think of something else so I went to plan B
18:47
Plan B is we are taking uh
18:53
our fish tape and we are going to pull the medic RTX 2000 wire
19:01
down through the van there's a lot of sharp corners
19:07
so they actually Supply you with this material
19:15
and I know we get into Dometic RTX 2000 territory as far as install goes don't worry we're
19:22
going to cover that in depth in its own video and you may feel that we are drifting
19:28
from the floor but what's happening is the electrical and the floor are meeting
19:34
in real time as the floors going in it's creating issues with the uh the wiring because
19:43
um of what we have going on and uh
19:48
the idea that we could do a lot of stuff in the walls and
19:53
now that's not so much and the fact that our shower pan
19:59
are pull out drawer slide and the back of our van have all been taken up
20:05
and we can't use that space to uh run wire so what we're going to do right now is
20:11
we already have our fish tape right here it's going up through the van
20:17
and up through this cavity and it's actually pretty easy you just
20:22
put it straight up through there and just keep moving it around if you have somebody to help you it's easy
20:28
because you don't have to stretch down but then you basically just get the tape uh it comes out here and then you're
20:34
ready to wrap it so what we're going to do is we're going to take this and I'm going to get some
20:41
electrical tape and I hope I have some of this drawer
20:47
because I did not plan on actually
20:53
planning on doing the floor but the electrical is saying it needs
20:59
help right now so let me get some electrical tape and then we're going to go ahead and wrap it
21:05
with the wire loom tape it up and we're going to attempt to
21:11
pull it through the van um actually I just went by
21:18
another piece of wire loom that may fit it that's smaller
21:24
so I think I'm going to try that all right don't go anywhere I'm going to be right
21:31
back I'm just grabbing some electrical tape
21:38
that's over here hopefully
21:46
rotate all right
22:06
okay we're gonna use uh I'm gonna get some green tape
22:21
all right so I found another in my electrical drawer I found some more wire
22:26
loom this is what they give you from
22:32
to medic this is what I have so
22:41
you see the size difference so I'm gonna try
22:47
oh yeah this is way better yeah the one Dometic gives you is is not
22:53
is too big that would not work because the hole that you have to put it
22:58
through is you don't really get that much room okay let's
23:06
see here so we're just going to start up here
23:14
and we can slide this uh if we need to
23:39
see if that's gonna actually
23:48
let's just see what the Dometic looks like on here though while we're at it so they do provide it
24:03
all right I take that back it's going to provide more protection and it crimps down so we're okay
24:09
so let's go ahead and just put this on [Applause] and we're gonna get ready to fish it through the van
24:16
[Applause]
24:31
now this doesn't have to be in the exact location that you need it right now if you've never used wire loom you can
24:37
slide it so you can I can slide it up and down
24:44
the wire that's going through the hole first if something happens to it it's okay
24:52
but the wire that's being covered up is the wire [Applause]
24:57
you don't want to mess up
25:03
is they give you a ton they give you a ton of wire way way more than we need
25:17
thank you
25:40
foreign
25:52
and then what we're going to do is when we get finished we're putting it on here I'm going to tape it at one end
25:58
and so that way it doesn't slide off
26:20
the method I'm using is if you take it and you kind of push it like that it'll open itself up
26:34
in a perfect world this small wire will be on the opposite side of the seam but it this thing keeps turning on me
26:42
thank you
26:58
[Applause]
27:26
all right that was fun okay so we have this here
27:32
and that looks pretty good so since we have so much extra
27:40
let's actually bring this up before we finalize it because this up
27:46
here is actually pretty abrasive
27:56
[Applause]
28:04
I'm not sure if we're gonna smush this in here
28:20
okay I'm gonna have to do something else up there so I'm gonna find another way to protect the wire I have some felt
28:28
uh some Automotive felt that goes around the wire and that should keep it protected it's a very thick wire so
28:35
[Applause]
28:43
uh how much actually I'm gonna try let's try to get this up here if I can
29:09
[Applause]
29:15
foreign [Applause]
29:30
so this part is difficult because you actually have to push up on the roof
29:35
in order to squeeze this past
29:50
[Applause] we're sake of the live stream I'm gonna work on that off camera
29:56
let's go ahead and pull this wire down
30:05
so you see they give you tons of cable so first thing we did is we taped the
30:10
ends of the wire here so they don't catch on anything and then we're further going to tape
30:15
this to our fish tape which is essentially a steel wire
30:21
that comes out of the wall and then we want to wrap the wire a
30:27
bunch of times around here not the wire we want to tape them together
30:33
really well so we can make them one and then we can just pull them straight to the wall
30:42
it's going to be interesting this is the first time I will have done this without electrical tape I have no idea
30:49
why I ran out in my electrical box but
30:56
yeah we'll definitely need some more for electrical tape for when we get to wiring this stuff for
31:02
real okay
31:10
and then you just kind of want to make it like a little nose on the end of it so it just kind of goes down smoothly
31:15
but who knows green tape might actually work so we're going to take it and we're
31:20
going to start feeding it through our hole
31:26
and then we'll take our tape at the bottom and that's what we're going to actually
31:32
use to pull the wire through the van and I'm kind of just using gently using
31:39
my foot to get it started since I'm so low here
31:45
and you want to feed it more through the top then you're kind of like pulling down through the bottom
31:51
um and then when it starts coming in you can start taking up your Slack
31:58
on the fish tape and I've done this much Benny time so
32:03
if this looks like I did it really easy is because I don't know I've installed a lot of
32:10
flat screen TVs
32:15
so that's it so now the wire is through the wall [Music] and the challenging part now is now we
32:24
got to see will our protected wire actually make it through
32:32
the good news is I'm not seeing any gouges in The Wire
32:37
uh as I look at the wrong wire
32:43
on there you guys it is it's late a little bit
32:48
nothing nothing there's not that bad
32:56
all right here we go before we do that let's make sure we tape this end
33:07
and green tape will be okay
33:13
we want to tape this end shut and it's doing the same purpose as our fish tape
33:19
where we want to make a little nose on it so it doesn't get caught and pulled off
33:25
so there we go all right
33:31
and this is going to come through the wall completely so we have plenty of cable to work with
33:36
all right let's see how well this works can we make it through the hole
33:44
it's very tight here [Applause]
33:50
all right answer is yes [Applause]
33:56
but just barely
34:11
okay actually I need my Slack
34:18
too far down there we go all right
34:30
all right easy right
34:40
because if you guys know me this top thing is bothering the heck out of me
34:50
Adventure wagon you can take you can unbolt this and take it out the problem is I've
34:57
already preset where it's supposed to be tight
35:02
and I have to take this whole entire l-track out and the A-frame member here
35:07
just to loosen it enough to get it down to get the wire through so
35:15
I think if I
35:21
we're gonna leave that for a different time we're going to leave that until we do the AC all right so we got our we got this up
35:29
here so let's just call it a win for our AC line
35:36
I'm going to take a couple of zip ties and we're just going to hold this back just so it doesn't flop around while we're working on other things in the van
35:51
but the good news is if you want to put your Dometic RTX 2000 power wire
35:57
through the wall um you can
36:03
there's enough room and the stuff that they give you to do it with
36:10
you'll be okay all right and that'll be another challenge to see how well this actually
36:15
fits up here because there's a panel that goes up here uh and then the other fun thing we'll
36:22
have to start dealing with is this section
36:28
we're going to need to figure out how to upholster it because the kit only allows us to cover
36:36
the Ford factory wire it doesn't it's not made for it's not designed to
36:42
handle this big bulge right here but it's okay we will
36:48
take care of that when we need to um the convenient thing is this cable is going to go bam right here
36:55
to its the power system uh it's the shortest run you could ask for
37:01
you know all of this cable right here is going to be unnecessary not used so we can cut it off we're not going to
37:08
do it now but we'll do it later so I'm going to
37:16
I'm just gonna leave all this right here and we're gonna Zoom the camera in
37:23
we're going to come to our next part where we need to uh
37:28
we're going to pull some USB wire not USB wire the power wire we're going
37:34
to use to connect our USBS over there
37:58
all right just to show you what we did with this camera
38:04
so you guys can see this is the part of the roof I said we have the
38:10
challenge we have this cross member right here the wires by themselves will fit through it fine
38:15
but this protective jacket we put on here it's not letting it go all the way through so
38:21
what we're going to do is probably off camera I will just correct that
38:26
but the opening we used was right here so in the Ford in the adventure wagging
38:34
kit when you relocate this forward wire and you bring it it's like right here
38:39
and you have to bring it up that hole right there is the one we went through so we came through here
38:48
and we put it through this hole that shares the forward wire there's a forward wire right beside that we went
38:54
through it then we went down to this channel
39:00
and then we came out right there and so that will come out there and
39:05
we'll plug directly into our power system later we'll actually be mounting a Shore
39:10
power plug right there and yeah this is just all the steps
39:17
we need to take to start knocking this van out uh let's see if I can get this level
39:25
and locked in all right so we're going to be working right there inside the van
39:36
actually hold on we need to work
39:42
up here let me back up
39:50
sorry guys I'm trying not to make you seasick right there
39:58
we go let's fix our lighting and we'll get back to work
40:32
okay I think it looks pretty good
40:45
yep all right let's do that
40:52
okay so next up we have our we'll have our wire coming uh through the floor and over here
41:01
but there's another wire that we're going to use and we're going to take we're going to do one option that I
41:07
think would help you guys in your wiring progress
41:13
is utilizing the ability to feed it around the max fan
41:20
so what I've found to be very helpful to me is where this Max fin is there's a
41:27
shroud and we did this in Thomas's van so I there's a Gap a channel back here
41:33
it's about maybe an inch and a half by an inch by an inch and a half High
41:41
and we can stuff a bunch of wires but what's nice is we can access this by
41:46
taking the vent hood of the vent shroud off so if we ever need to do maintenance
41:52
we don't have to go through our floor that's going to be permanently put in we can go through and and change up these
41:58
cables so because our 2s our USB port for the overhead cabinet charging capability and
42:07
light system is up on top we're actually going to go
42:12
on top so we need to actually take this
42:18
panel off
42:26
so that we can access it
42:48
so this panel
42:54
holds this panel
42:59
okay now that gives us access to this back side here
43:10
so this is probably going to fall off that's okay all right so right now what we're doing
43:15
is we're coming through here so this Main
43:21
a piece of the van here we have a cover
43:28
just like this there's another there's another one of these that goes there and that's where
43:33
we're going to hide our cable run
43:50
so we're gonna go ahead and get we're gonna go into our 14 two wires
43:57
and I think I have one that's already off of the spool so let's use that one first
44:13
okay so 14 2 this is our thinner gauge wire
44:19
14 I believe is gauges up to 15 amps so this will provide us power
44:26
for two of our fast charging USB Outlets
44:32
it's just important to say fast charging because you need that amperage
44:38
so the circuit will uh or fuse the circuit at 10 amps
44:44
because we need that amperage to be able to charge Quick Charge devices a normal USB outlet
44:51
is going to throttle you and you know we're building a high-tech van here we
44:57
don't need to be throttled for our USB charging
45:05
and so what I'm doing is uh let me move the camera
45:10
but you guys could see that
45:29
so we're coming up through here going above our Venture wagon frame and
45:34
then we're just just stuffing it in and see it comes comes right out here where the fan is
45:42
let me get some more cable foreign
46:00
goes in there you don't have to do it but if
46:08
it'll make things easier as I wrap it around this other one
46:19
there you go
46:31
so this the USB wire up here this is the only one that's not going to be going in our floor
46:36
but since we're talking about it might as well talk about it
46:47
if you can't get the wire here you can turn it upside down like that and then put it back in
46:54
and then sometimes it'll yeah boom
47:01
you just try different tricks like that if you ever get stuck running a wire it's not going where you want it to
47:12
so this one again we're going to utilize the this wire tray that Adventure wagon has
47:19
incorporated the Ford wire harness
47:24
the four wire harness this is used for the tail lights blinkers stuff like that
47:29
cargo lights and we're going to use it as well
47:38
and if I hadn't mentioned before I'll probably repeat myself but Marine wire is what you want to use
47:44
because it's got that extra piece of rubber on the outside or sheet sheeting
48:03
yeah and that is a hassle to un get all these Kinks out of it but you want to do it
48:10
because if I need to pull this further in I don't want it wrapping and coiling up
48:15
like that when I'm doing my wire run this typically happens at the end of a roll which this is so
48:38
okay we need this one to go back there to the back so I have a panel
48:45
there's a panel right here that I took off and just so you guys know what we're doing with this
48:51
we have two uh upper cabinets so they're from Flatline vanco
48:59
and they bolt into the L track they're Adventure wagon compatible part
49:05
and they bolt into l-track but for the look of the van we have these really nice lumacoin lights we
49:12
have one two three four five six uh they are bright
49:17
they're individually controlled though and they do convert to Red for night
49:22
time so you can turn the walls are red but I like to have a little bit more
49:29
light in the van um you'll you can't believe
49:34
you can't have enough light in the vanity because that's what I'm saying so I had these two four foot LEDs that are
49:41
motion activated so when you want them on you just wave your hand underneath the upper cabinet
49:48
and they'll come on over here or if you're over here with this kitchen Galley you just wave your hand it comes
49:53
on you can hold your hand and it'll dim and then you can hold it again and it'll
49:58
go back bright and it just gives you more light over here
50:06
so that's what this is going to power so we need to make sure that this has
50:12
the ability to reach all the way over here and we need a little bit of excess so that we can
50:18
just make sure we got enough wiring here and this is where zip ties come in
50:24
don't worry this is going to be temporary and then you can uh you know cut it and then when you're
50:31
ready to do your permanent wire you can just redo it it's just really here to
50:37
hold it but we're going to make use of this uh
50:43
so right here this this is the wire tray so for the top piece we're going to use
50:49
that we're just going to kind of I'll do a couple zip ties
50:58
so I know these are probably going to be permanent holding spots for it because I've just done this before
51:08
so there we go we got that stuff it in here
51:24
then we'll do one more right here
51:37
okay so I'm happy with that that's probably
51:43
just going to be its permanent location you got plenty of slack right there to mess around with if you need to we don't
51:49
really have to go back over here and this is just going to lay down now remember to use my method of either
51:55
using a little bit of the thin kill mat to Tar kind of like a tar paper it down
52:01
or use tape um tastes not going to hurt anything but
52:07
the tape is going to help it stay put down and not rattling if you go over bumps
52:21
all right I'm going to come over here let's put another zip tie
52:28
a little hack is if you're trying to wire something take the end of the zip tie and bend it
52:33
over so it makes like an L shape and you can kind of like needle it through the uh
52:40
the holes and the sheet metal of the van and it'll help you
52:46
it'll just help you get it through the sheet metal because it's it's weird
52:53
okay so now we're getting back to
52:59
something that's more relevant to the Floor video
53:06
so over here we've got our path that we've been working on
53:15
and then we have our wire so I'm trying to see
53:38
my network cable and this other cable where we need them underneath this foam
53:44
however you need to cut some of the foam away
53:53
be very careful not with the razor because it's sharp but don't cut a wire
53:58
a hidden wire
54:05
that you've already hidden underneath the van you'll be very very
54:13
upset okay so now I think we can
54:20
there we go so now we can run the wires over here
54:28
perfect
54:37
so now that we have the floor in right now we're just doing cable management
54:43
and we're just triple checking everything because once we have the
54:48
actual floor down we're not going to be able to double check these wires
55:12
now you by no means do you have to do this how I'm doing it the only reason the wires
55:17
are like this if you guys didn't listen to the other live streams where I talked about it the
55:24
reason I'm doing this is because my priority is other components so the flip and fold seat the shower pan the bracing
55:31
for the pulled out tray uh making sure that the floor doesn't Buckle in the back
55:36
that's my priority wherever the wires need to go to make it to their home then
55:43
they're going to have to take some other path because this is it's like this area is already spoken
55:48
for type of thing so all right now we have
55:58
we got a network cable and our victron communication cable right here
56:04
so they got a place to go this is all loose because this area
56:10
right here is going to have that uh
56:16
that upholstered piece cover it so we're just keeping everything loose
56:23
and the reason I'm taking you through this detailed process is you're seeing it live we deal with problems and come
56:30
up with Solutions uh you can spend you know a thousand hours
56:37
uh on a computer with SketchUp or some engineering software and like get this
56:43
really laid out but for me it's actually more enjoyable just to do it step by step
56:50
because you know over the process I've changed my mind on the kitchen Galley placement
56:56
and taking into consideration this is a spec build so this is for the business
57:01
the shop it's not a customer's van yet but it is designed in a layout
57:07
in which um it's a lot people are looking for the additional two people to be seated the
57:15
additional cargo space the shower be able to shower inside the van
57:22
but everything else is kind of you know trial and error as far as
57:27
how to set it up and that should get you guys really excited
57:33
about your own personal build you know it does not have to be perfect in the first go
57:39
I said in the last live stream that you know these were the materials we're working with it's foam wood and glue so it's
57:47
just simple stuff so if you tear it up you can fix it it's not the end of the world
57:54
but what I'm doing right now is I need to now we need to have this uh to be able
58:01
to wire over come through and get to our
58:08
fuse panel so I think what we're going to have to do
58:21
is we're going to come through here and then make another cut out to go
58:27
across across here pretty sure that's what we're going to do
58:46
I'm going to look to see if I can come on this outside now I don't have room all right so we're just going to come
58:52
straight down here uh we're actually going to come through the middle
58:58
because there is a
59:03
there's a loop in the adventure wagon kit that is for a cargo tie down but
59:08
we're going to repurpose that as a wire run for a wire run
59:27
and be careful of the wires that you have underneath this
1:00:05
and so I did I cut like a triangle so this one I didn't actually go all the
1:00:10
way through and uh we're gonna see if that works if not we'll just cut it all the way
1:00:16
through uh but this one we just got to be extremely careful because
1:00:21
this is our our main power wires are underneath here
1:00:27
that run to our sub panel and we just need to make sure that we do not
1:00:34
Nick them
1:00:41
[Music] okay
1:00:49
so now we'll take our wire
1:00:56
I'm going to put it through our little wire run that we have down here which goes underneath our floor
1:01:02
and what's cool about locating this hole right by the kitchen Galley is you can make you can use the step to run all
1:01:09
your wires down into the step finish your floor and then take them and go up through your floor
1:01:16
so you can run your wires and put the floor in at the same time foreign
1:01:30
[Applause]
1:01:45
stuff up and out of the way until we get to uh
1:01:51
let's get the panels and stuff on
1:02:07
what's nice is Adventure wagon has a complete upholstered panel and we'll be able to mock up where we have these
1:02:14
openings on the back and then we'll know where to actually locate all of our our cables the renergy one screen
1:02:21
and other components
1:02:40
foreign
1:02:48
and give yourself a bunch of slack as you go up just in case you have to move it through
1:02:54
uh or change it up so we're going to leave it just like that
1:03:01
um let me bring it right down through here
1:03:10
and then we're just going to leave this slack down here there's not much of the wire left
1:03:34
do you guys kind of here can I hear all that squeaking that's why we want to use tape now this
1:03:40
is again
1:03:46
we're uh just doing this temporary to hold it hold it back do you you do want to have some type of
1:03:52
uh something to hold it and keep it from moving around whether that's like a felt lined Automotive like wire wrap or
1:03:59
something just so it doesn't has the potential for noise okay the USB for the that side is
1:04:07
finished um we may run another USB here
1:04:13
but we're gonna see how are we doing on live stream so far
1:04:43
so the last part I'll do is we're getting it's getting pretty
1:04:48
late here we're just going to talk about the uh 12 3 wire
1:04:55
foreign I'm going to show you where it's going
1:05:01
to go and silver here
1:05:15
so we're going to take this wire now remember we need two of these and then we're going to do two 14 gauge
1:05:22
wires and we're going to run them uh so two of The Twelve to three
1:05:30
those two will go to our pop-up Outlets and then the other two 14 gauge one's
1:05:37
going to go to our hot water heater and then one the other one's going to go to our
1:05:43
auxiliary plug and the flex space of the kitchen galley
1:05:50
so now that we have this wear out we can make sure that you know
1:05:56
we can fit you know two in the floor here and it looks like we can
1:06:03
so I'm just going to put this here a lot of extra room
1:06:11
we'll come back behind the heater come around here
1:06:19
and then we're just going to make sure we laid this down flat we'll make the decision uh
1:06:27
next week if uh well tomorrow if we're going to put some wire loom
1:06:32
around it if we do it'll be this so we'll take we'll take this that we
1:06:38
didn't use and yep so we're going to be using this
1:06:43
we'll put both of the flat 12 3 and then we'll put the 14 to 14
1:06:48
gauge and this we'll put it down we'll wrap it in felt around the outside not all the way just
1:06:54
so it doesn't move around this will protect it from the shower pan tray as well as any abrasion and we'll
1:07:02
be good to go so this will just come around here
1:07:07
and then what this will do is this will also come up through this hole here
1:07:14
and serve our electrical boxes uh so that part's gonna get really exciting so once
1:07:20
the floor is kind of the boring part once we get all this wired and put in here when should we get the kitchen
1:07:25
galleys in and we actually started hooking up the electrical component it's going to get really it'll be really fun to uh
1:07:31
to see this thing uh kind of take shape but yeah that's what we're gonna do I'm
1:07:37
gonna stop this for tonight and um we'll pick up tomorrow
1:07:44
with uh finishing up this wiring so what I'll do is I'm going to finish the wiring
1:07:51
ahead of the live stream get everything tidied up in the floor because I got to go to Lowe's and get two more wires
1:07:57
I'll get that checked off I'll get everything wrapped wire wrapped ready to go uh the floor all cleaned up
1:08:06
and then these panels have to be painted they need to paint be painted dried
1:08:14
and as soon as they're dry we can uh glue them down
1:08:20
then we'll do that overnight and then even though we wanted to do the lawn seal tomorrow that's probably going
1:08:26
to look Tuesday looks looks like we're gonna be doing that Tuesday
1:08:33
so yeah if you guys have made it this long into The Stream I really appreciate it I want to thank everybody for
1:08:39
watching I want to let you guys know to make sure that you are subscribe to the channel
1:08:46
that if you have any questions you can man that is so bright
1:08:52
it's so bright and if you have any questions uh put
1:08:58
those in the comments and I'll answer them as best I can
1:09:04
um also if you haven't check out the DIY van build cheat sheet link is in the description below
1:09:10
uh and um yeah it is late so
1:09:15
appreciate everybody watching keep keep uh keep checking out the live streams we're gonna get this band done
1:09:22
and it's gonna be really exciting so until then we'll see you guys in the next live stream
1:09:30
[Music]
#Construction & Maintenance
#Flooring
#Home Improvement
