check two one two there we go some audio okay this live stream is to
1:35
we got a bunch of questions during that video um that just
1:42
published which is the off-grid campervan power system layout so we had two questions and I'm gonna
1:48
wait just a minute so if you guys have uh any questions go ahead and hop into
1:53
the chat and we'll answer them I'm gonna go back to the video and try to pick up the questions that were asked we have
1:59
one from Nick and then one from Daniel so let me go find them so I hope you guys are gonna
2:06
come in because uh the video ended on the premiere and I was trying to answer
2:11
those questions and uh cut off before I could paste the answers for you guys
2:17
um let's see here Daniel had a question about 300 amps
2:25
um so Daniel if you hop back in here maybe we can um answer that question and
2:30
then Nick had a question on the Blue Sea Systems fuse panel so I'm gonna go ahead and drop a link to that product
2:44
um
2:56
somebody's silent here just for a minute guys um just give me one second
3:15
here just for a minute guys
3:35
foreign
3:52
get that one saved
4:21
so what I'm doing right now is I'm pulling up the the van Builder uh the the DIY van build cheat sheet and I'm
4:28
picking up one of the products that Nick was had a question on uh during the video so we just did a
4:34
video talking about a power system layout in your van kind of how to arrange everything
4:41
um where everything needs to be as far as uh you know location make sure there's
4:47
enough room for everything to be wired up enough room for you know cable runs
4:52
stuff like that so one question that was asked was uh what company do I use for
4:58
the fuse block so this is going to be like the remote fuse block that goes uh
5:03
somewhere else in the van that way you don't have to wire everything to The Battery area you can actually move it to
5:11
a separate area and then distribute it from there
5:16
so all the products that I use in the van for USB Outlets
5:21
um like a cigarette lighter like 12 volt stuff like that even the 110 volt AC circuits are blue C
5:30
systems really good product very high quality they're all used in the Marine
5:35
industry and if we go over here I'm just going to
5:42
let me find this link
6:12
all right Peter so you got a question
6:19
so Peter where were you asking the question about 300 amps being incorrect or was that Daniel that might have been
6:25
Daniel um all right so let's see what question you have I'm planning on putting in a
6:30
3000 watt energy inverter charger with two 200 amp lithium batteries
6:37
uh from Amazon starting out with only Shore power
6:42
do you know of a good diagram that shows wire size and fuse size okay so we can we can look
6:49
that up while we're working here um so I just mentioned Blue C systems
6:57
so I'm just gonna have to hop on Amazon really quick I'll add this link in for
7:04
uh for Nick Lucy's system this is the uh
7:12
you guys can see I'm over here
8:11
all right how about that there we go I'm back I'm back foreign
8:16
I can redo this I had the uh I had a lapel microphone when we were all working on the system back here for the
8:22
last week's live stream so now I'm back on this big microphone um so the audio should be back let me
8:28
check my phone here there we go okay we're back
8:36
okay
8:44
all right should be back now
8:51
okay here we go we're gonna go to all right so Nick this is the blue sea
8:57
system blade fuse block what's important about this is it comes with a cover so it comes with this
9:02
plastic cover that goes over it and uh the other thing you want to make sure
9:08
it has is it make sure it has a negative Mountain location
9:14
so on these uh let's see here
9:19
so in these boxes you have uh you have a negative terminal up here
9:25
at the top I don't know if I can zoom in on this no I can't so you have a negative terminal terminal
9:31
up top and then you're going to have a positive terminal at the bottom sometimes for
9:38
whatever reason these only come with a positive terminal you want the negative terminal so you can just run the two
9:44
wires to this unit and use it as a kind of a hub for everything so all your
9:50
small amp or low amperage appliances um or Electronics you know anything less
9:57
than 15 amp like 15 20 amps um this thing I get oh I can get skit
10:05
um is 100 amps Max per block 30 amps per circuit
10:11
so technically you could do uh like 330 amps and a 10 amp
10:17
but typically they're going to be much less they're going to be in like the 1510 you know amp range
10:25
but I really like this one this one is uh not on the list I will I will add
10:32
this um where am I okay let's get back to Peter's question
10:38
so he he's using the renergie 300 watt inverter
10:43
so if you go to renergy it's a website
10:49
they'll tell you this in the manual but I'm going to actually show you where
10:56
it's at in the manual because it might be hard to find so if we go to inverters and he has the inverter charger so we
11:05
get the 3000 watt here
11:12
so we get the 3000 watt and yeah let me know if you guys can hear me still I can
11:17
hear it on my uh my phone over here monitoring it so just give me a thumbs up if you guys
11:24
can hear me but we have the 300 3000 watt uh
11:29
inverter so renergies kind of change their site usually you can just scroll down and find it right here but what they've done
11:36
is if you scroll down this menu pops up here and so when the
11:41
where the menu is you want to click on downloads uh then you want to click on manual book
11:49
uh so when you click on the manual book let me zoom in here [Music] um
11:55
you're going to scroll down let me zoom out here I'll Zoom back in a second
12:01
I'm going to scroll down and you're going to go to [Music]
12:06
uh
12:21
okay so you're gonna go to page 13. so page 13
12:28
what we have is the model so you find your model so for example Peter you've
12:34
got 3000 Watts uh the recommended fusing is 300 amp
12:41
fuse and the recommended wire sizing so this is the wires coming from the battery
12:48
so if you directly wire the battery to the inverter
12:55
than the 300 amp fuse is what would be in the middle well
13:01
it doesn't have to be perfectly in the middle um but the four out is going to be this
13:06
size uh now with renergy stuff
13:11
um I like renergy we talk about on the Channel all the time I always triple check this so I always kind of get like
13:18
a second and third opinion you should do this uh with anything in
13:24
the van industry um so what I do first is
13:31
let's do [Music] um 4 ought
13:36
wire Max Amps okay now you can do this for anything
13:43
it doesn't have to be this uh I need this to be zoomed in
13:50
there we go so forward welding cable carries 310
13:57
amps so there we go there's our there's our
14:02
first or our second opinion so get ready you've got this one let's get one more so the next one I like to go to
14:10
is we're going to go to uh blue
14:16
C systems uh this is Gage let's see your wire
14:24
gauge chart
14:29
and then you're going to click on images and then there's this chart right here
14:36
and let's click on this one all right so this thing is really cool
14:42
so I actually have I don't know where I put it but I have one of these that's printed and
14:47
laminated in the shop and it's just you know just a quick reference some of these I have memorized
14:54
but I always refer to this before actually cut and crimp even though I've done it a bunch of times
15:01
so what you're going to do is in a van the length of the wire is not
15:08
that critical as far as a voltage drop goes however I have to walk back what I just
15:15
said because on Thomas's van and this is one of those things when uh if
15:22
you do everything by the book there's there's kind of one more thing that might be sensitive to a certain
15:27
product so for example uh we put a vitra frigo drawer fridge in his van
15:34
and it was only consuming uh
15:41
actually now I gotta forget but the amount of amps that it was consuming I measured it
15:47
and I sized the wire to the amount of amps uh I oversized it a little higher than
15:54
the amp that it was consuming just like a typical electrical circuit what happened with the fridge is
16:02
every now and then there was like an intermittent um error and it was a voltage error it was saying
16:09
low voltage but I was one I measured the the batteries and we still have like
16:15
13.1.4 volts and so it didn't make any sense and I said wait a minute let's look at
16:21
the fridge and let's see the voltage drop uh the voltage rep the fridge was around
16:27
12.8 and when the van got hot and everything was on under load it was dipping past
16:33
that uh threshold that the refrigerator was happy at
16:39
so I went and I retraced the wire run because we had wired so much stuff in
16:46
his van um and this happened to be the longest run because we had to go
16:54
we had to go from the passenger side of the van we had to run it all the way down the passenger side we had run it up
17:00
the wall we went across the wall and then down to the kitchen Galley so where
17:06
the kitchen Galley sink was that was where all the other wires terminated however we still need
17:12
to go to the bottom of the van towards the driver's seat
17:17
back and then up so that added almost another 10 feet
17:22
so believe it or not that additional 10 feet did make a difference just a hair of a
17:29
difference in the circuitry to make the fridge maybe once a month have a error
17:37
so what I did is I I pulled it out we went back to the manual we translated
17:45
the manual because the manual was uh uh see what what is the vitri grow
18:06
let's see here I'm looking it up on the computer real quick
18:14
I think Ava's Italian I think it was Italian I think it's an Italian fridge anyway so I went through and I googled
18:20
translated the Italian side of the manual not the English version and on
18:25
the Italian side of the manual uh it has uh it had a
18:33
a current rating for the fridge uh
18:41
see what was the current rating it was something like 30 or 40 amps for a 12 volt fridge and I just it I
18:49
could never on my uh uh 12 volt uh what am I trying to say
19:01
okay so on this guy right this is what I use to test on my circuits and find out the voltage draw just to
19:08
make sure everything's within spec so I use my voltmeter on it and
19:13
the blip of Surge from the compressor turning on because it's not a soft start
19:19
compressor that the slightest blip did a voltage Spike
19:24
and it was enough to in the just instant create error on the circuit board it was enough to run
19:30
the fridge no problem because the original it used it was very very efficient fridge however I had to I uh re-up size the
19:39
wire gauge to uh what did I use 10 gauge I think I went
19:46
to 10 gauge uh and every all the problems went away everything got fixed it hasn't had a
19:52
problem since so long story short
19:57
are long story long the reason that I first said
20:04
feet doesn't really the length the wire length doesn't really matter in a van is because a van is you know it's no more
20:10
than like 20 feet long that you're going to use of a cable however in a particular situation with a
20:16
particular manufacturer and sensitive Electronics yes it can make a difference
20:22
so the length circuit length over here does make a difference in those very
20:28
rare cases all right so moving on find out how long how far away your wire
20:35
is going to take from the unit to the battery okay that's going to be your feet
20:41
and as long as you're between 0 and 20 you can use this Top Line right here
20:47
so 0 to 20 if we are going to consume
20:53
um and you see how this runs out at 200
20:58
amps uh so Peter stay with me here
21:05
so the 200 amps we've got a 2 ought cage wire
21:11
but when we go when we look up online we have found let's get where's other
21:18
we go and search R4 we know we have 310 amps so you can kind of understand that
21:24
of where this goes now wire gauging is very confusing
21:29
um you kind of have to think backwards on this so the higher the number
21:36
the thinner The Wire and the lower the number the thicker The
21:43
Wire so we have all this down here
21:49
for example and the video that if you guys watch that that I just uploaded we have a 50
21:56
amp DC to DC charger so for 50 amps we're going to use a six gauge wire
22:04
and the 50 amp you can see is safe up until about 70 and then you need to
22:10
go up to a four gauge the number goes down but the wire size
22:15
goes up and then it continues where it gets weird is once you get from four two to
22:22
one it turns into [Music] uh one Ott so like the o or zero two watt
22:31
three hot four hot and those are real big thick cables I'm gonna pick one up
22:50
all right so let me go back to here
22:55
so this is six gauge and this is two Ott so you can see
23:06
you can see the difference so for example this is going to come from my alternator
23:13
of the van well technically from the battery terminals of the engine batteries
23:19
but this one is what I'm going to use to connect my uh
23:25
12 volt 100 amp hour batteries together is this one a two Watt
23:33
um but going from your
23:39
so for example we're going to connect that to the uh
23:47
so let's see if I can finish up Peter's question here
23:53
so it says you need a 4 ought cable for 300 amps
24:06
yeah so the four odd is gonna we're gonna take that from
24:11
uh the like Lynx distributor for example so we'll go from the batteries to the
24:17
lynx distributor and from the links distributor to the inverter and then what's nice about the lynx
24:24
distributor is this 300 amp fuse right here we can put in the lynx distributor
24:32
uh because if you look the lynx distributor up and I'm gonna I'm gonna draw this here
24:37
in a second I'll draw this out
24:49
so the lynx distributor
25:01
I forgot the Amp Max that's what I'm looking up
25:34
ah let me type it up here see links
25:44
yeah thousand amps a thousand so you can have four 250 or you can you can spread
25:51
it out um so Peter for example that box that I showed in the video this one
25:59
what you would have is going across here so you'd have your batteries coming in on this first front
26:06
side and then you would use a mega fuse coming across this and it would be a 300
26:12
amp rated fuse and then you would go to your inverter so that's that's where I would put
26:19
um but that all right that was a long answer um
26:25
hopefully that helped I can also draw it if you would like me
26:31
to
26:39
uh let me see if I can find an image
26:51
all right I'm just referencing this do not this is not an example of mine
27:01
um okay that's not a good example let's not look at that
27:22
yeah I might draw I might draw it because these are these are a little over complicated
27:29
so let's draw go to the drawing pen
27:36
oh I get crank it up here
27:50
so I believe um yep I'll do a drawing so Peter asked what size wire from the shore power plug
27:57
to the inverter charger and do I need a fuse in there so there's a couple ways
28:03
to answer that um Shore power plug you have different
28:08
ratings so there's like 15 amps 30 amps 50 amps and it depends on
28:15
this box right here so this is uh the inverter charger that's going in the van uh Peter you probably have like the blue
28:21
one this is the new gray one uh there's nothing the only difference is this one has a integrated Bluetooth inside
28:30
uh so there's a setting on the panel and but I will draw that I will I will do a
28:37
drawing here in just a second um there is
28:46
okay let's go back to renergy there is a
28:53
see if I can find it so there's this digital panel right here and you're able to
29:03
uh I'm gonna explain the concept of this this is the first time I've used the
29:08
renergy inverter charger so I haven't gone in to do the settings but I've I've read enough to understand
29:15
what I need to look to change in order to size my wires when I get
29:20
there so I'm gonna explain to you how I'm proposing to do it and then hopefully by
29:27
next week I can actually show you how I did it
29:34
so there's these there's a screen that you're gonna that's gonna come on on the unit and you want to find where it you are
29:42
adjusting the Shore power incoming
29:48
amperage because it's adjustable
29:56
so it's like Shore power amperage configuration something like that let me just
30:03
see if I can search this so you can do control F on some PDF documents
30:09
and then uh you can search the PDF so I just did
30:16
Ctrl F attempting sure so this little wave means Shore power is
30:22
connected so we're going to keep pressing enter um
30:29
this inverter charger will automatically switch from when it senses Shore power
30:35
to be charging from it but we want to figure out how to
30:41
set Shore power
31:00
it's gonna be one second this may I may find it now or I may find it later
31:07
fix it there's a there's a way for us to control how much amperage is going
31:14
uh is what is what's being used so again long story short you want to size The
31:21
Wire of your Shore power outlet that goes and connects to the inverter charger to
31:29
handle what you're anticipating using so if you're going to plug it into your house and you're only going to use a 15 amp or
31:36
a 10 amp outlet you know size it for 15 amps
31:41
um but sizing it higher is not going to hurt anything uh you don't want to undersize it so you don't want to size
31:48
it for 10 amps and then use it for 30 amps very dangerous don't do that
31:55
now uh don't quote me on this but I believe there is like a bi-metal
32:01
overload uh fuse inside the inverter charger
32:08
so that if it gets uh too much it'll it'll disconnect itself but you can all
32:13
you can always add a inline fuse
32:19
uh okay let's see if I can find this really quick here
32:25
see surge
32:40
okay where is this thing
32:51
okay I'm gonna go the drawing
33:36
all right we should be back we should be back yeah I was on the lapel mic last week so
33:43
I turned all my settings to Lapel so we should be back again we should we should have audio
33:48
I can see it on my side so yeah just give me a thumbs up when you when you guys hear it
34:05

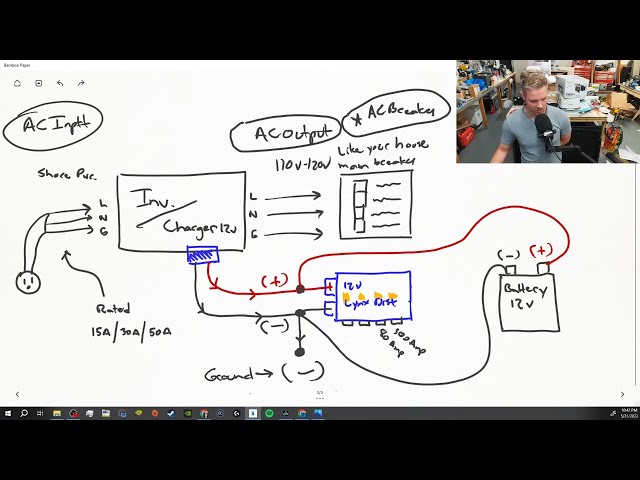

okay here we go foreign so we got the inverter charger
34:12
uh we've got so let's do Shore power over here
34:21
okay so the short power is going to be line
34:26
neutral and ground so you're gonna have three wires
34:40
and then this needs to be rated
34:47
to your uh what you're going to have 15 30
34:55
50. so let's just go to renergy let's just see
35:01
let's just see what the max amperage is
35:36
okay so over here what we're looking at is on renergies uh page we're going to talk about AC
35:44
wiring and they have a little diagram here showing that there is the output
35:49
the AC output so this AC output
35:56
so I'm gonna do this in red
36:10
oh my colors
36:23
hold on a second I don't know why it's this messing up I mean technical difficulties today
36:49
come on
37:00
it's gonna be red no
37:08
no all right one second I'm gonna exit out of this this thing's messed up
37:21
see they're my colors but when I Let Go it makes them disappear
37:30
all right this is
37:54
all right guys we're just gonna have to use black all right so with this side we have AC
37:59
this is uh input so this has AC input and then this side
38:06
is AC output
38:11
I don't know why I'm using the Slash
38:30
okay this is not perfect but it's just more illustration
38:42
so we'll do little arrows here so you guys can kind of see where the how the power is flowing
38:48
and so this you know think of this as like your
38:55
household plug over here okay
39:01
and this is going the power is going in so this is the flows going this way
39:08
your outside your AC output from the inverter charger is going to go to a
39:14
box so this box there's two different kinds of boxes so
39:20
this is your AC panel this is not 12 volt yet we're not we're only talking about AC here
39:27
so mute this
39:32
Blue Sea Systems 110
39:38
volt breaker
39:43
and we want this right here so this is the one that I use
39:48
policy systems 120 volt AC4 position it's very compact if you've got breakers
39:55
like this they're kind of like the ones in your house uh hold on hold on I know you're not still on the screen
40:02
Stay With Me so this is what it looks like it has Breakers okay
40:08
and then what you're going to do is let me
40:16
search image
40:23
uh we're going to keep this simple because this is technically
40:29
complex
40:35
um I can't get some software here to so I can help you guys zoom in on these images
40:42
uh let me just save this image
41:08
there we go perfect okay cool cool check it out
41:14
all right so this right here is this
41:21
okay this right here
41:27
so you have your microwave your outlet your water heater maybe another Outlet
41:35
um this is like your house
41:41
Main breaker okay
41:49
so over here on the left you've got this is 10 this is like a
41:55
plug that plugs in your house so this is Shore power it doesn't matter if it's 15 amp 30 amp or 50 amp this is like
42:02
plug-in extension cord into your home or like the RV Park
42:07
the ratings are what is specific to what your inverter charger can change it's
42:14
also specific to the gauge of wire that you're going to size to get the power from the RV camp
42:22
or your home into the inverter charger safely so once it's in the inverter charger
42:29
and it turns into charger mode um hold on a second I'm leaving you I'm
42:36
leaving you guys astray we're gonna have AC output and then
42:41
we're going to have
42:47
12 volt output okay
42:53
and that 12 volt output is going to go to
42:59
stay with me guys I'm 12 volt output is going to go to
43:06
your
43:17
this is going to go to your 12 volt fuse panel so kind of this is what Nick was looking
43:22
at earlier so these are like your blade fuses
43:30
you know Max maybe like 10 to 30 amp
43:41
so you have two you have your colors over here
43:50
he wasn't doing that
44:09
anyway so you have your 12 volt fuse panel
44:16
and then you have your AC output
44:39
you got your AC breaker okay I know these are not different colors
44:45
but this one right here hopefully you guys can understand that this right here is
44:51
just AC only so Mains power you know 110
44:57
120 and then down here this is 12 volt power so you have two different runs
45:16
yeah these are great questions guys they're great because I see where this can get
45:21
very confusing um
45:28
all right let me give me one second I'm gonna try to fix
45:34
this because I need the colors to help teach you guys this this thing up
45:40
here I don't know if you can see my my
45:46
this color thing I drag it and I need these colors right there when I Let Go it resets everything
45:56
um hold on give me two seconds
46:26
this is crazy I have to make up my own colors again
46:37
technology is supposed to be easy right this is ridiculous
46:55
there we go maybe those are better colors anyway okay I need to erase the 12 volt thing because this is getting very confusing
47:05
all right I'm making this confusing okay
47:15
here we go here we go here we go this
47:21
is okay
47:31
there we go okay here we go
47:40
so the arrows designate the direction of the power coming in
47:45
so your 110 120 volt side of your inverter charger this side is not
47:53
charging your batteries okay it's not
48:00
this is only operating through the breaker
48:06
uh your 110 Outlets
48:23
we're going to get to the 12 volt here in a second
49:11
foreign
49:18
stay with me we're doing good here okay so this side right here remember
49:25
110 the inverter is taking power from Shore and it's directly going
49:32
through the inverter charger just straight okay
49:37
nothing's being converted all right boom
49:43
the next thing so let's get rid of this the next PATH is the charger
49:49
part of it the charger part
49:55
so there really needs to be like a slash here inverter slash charger
50:02
I think inverter charger is confusing it's an inverter and it's a charger but the charger
50:09
is on the 12 volt side okay
50:14
so what's happening there is we have uh we've got a negative
50:24
and we've got a positive it's connected
50:29
and you can kind of think of inside here
50:35
there's a part that is the charger so it's like a DC to DC charger but what
50:40
it's doing is taking the shore power and it's converting it
50:46
to 12 volts not technically 12 you know it's it's enough to charge it's a higher you know
50:54
like maybe 14.6 to charge a lithium battery and then that is going into
51:03
so let's see let's see so like on the links so that you'll see this later when I actually do
51:09
this in real life but this right here
51:16
um if you guys are if you watch the video there's fuses in here
51:22
so it's inside here think of uh you've got four fuses
51:27
big chunky Mega fuses right so you get like the 300 amp for your
51:32
inverter you've got maybe the 80 amp for your air conditioner so let's just say this one is the 300
51:41
um
51:46
so let's say like this is the 300 come on pin
51:51
see this one is the 300 amp fuse let's just say like this is the 80
51:58
amp fuse for the air conditioning
52:03
and then here you have uh
52:11
these two wires are coming off of I hope this does not confuse everybody
52:18
but these are being connected to
52:25
the lynx distributor the reason I put the two terminals over here is because
52:35
okay here I really I'm gonna make sure I simplify this
53:03
okay you've got the negative side of the lynx distributor and remember Lynx distributor is nothing
53:10
fancy it's just a big old bus bar that happens to allow you to put fuses across
53:16
of it you know for convenience because you technically could have
53:23
just two bus bars a negative and a positive one and then have
53:28
you know one two three four like one two three four you know
53:34
branched out fuses so what's happening is right here
53:41
there is a post all right it's got a bolt on it and we get a post over here it's got a bolt on
53:48
it and we're connecting the inverter uh
53:54
two um actually back up
54:10
stick with me guys this is uh this is hard when I don't have it pre-done
54:17
I'm laying this out so that you guys can reference this like forever so I need to make sure I do it right
54:26
so down here in the bottom you need to make sure you have a negative
54:32
uh this is your ground so this is your uh
54:38
Ground Post so let's say right here this is our Ground Post at the van
54:50
and so what we have this is we'll do next we're making this one negative
54:59
so this wire is negative and this top one is positive and I'll show you why I did I flipped that
55:06
I did it so that I can show you that a
55:12
coming off of here we are going and we are connecting to
55:17
our our negative ground
55:26
okay so that's our ground so the inverter is coming to ground you got the leaks distributor coming to
55:32
ground and then what we're going to have next is we're going to have our
55:41
batteries over here
55:50
we're just going to do one battery so we don't get confused so we have our negative terminal
55:59
we've got our positive okay
56:13
all right you guys give me give me a thumbs up here if this is a this is working
56:18
but this is helping I'm going to keep going
56:33
if you're wondering what the uh this little black circle is that is
56:39
like a terminal post uh but if that word freaks you out just
56:44
ignore it until we're done
57:09
okay let me get my face out of the way
57:26
okay oh brain dump here okay this is the battery
57:39
so what we're doing is the battery comes in
57:45
and these are just post so all this is is uh I mounted here but I'm showing you
57:52
this so that you can kind of see how it's connected so it doesn't look
57:58
too crazy and so examp for example when the AC
58:05
from the shore Powers coming in the inverter charger
58:10
so kind of forget the word inverter um well no don't forget the word
58:16
inverter the inverter part is is when we're
58:24
taking the 12 volts and we're inverting it we're taking 12 volts and stepping it
58:30
up to 120 volts to run our appliances okay
58:36
so when we're running off of the battery system only and not sure
58:42
power just the battery the battery is only supplying 12 volts now I know
58:49
technically it's 14.1 or 13.7 I know that we're just going to say 12 volts just to be
58:56
simplified so the battery is 12 volts
59:03
okay just for example purposes so 12 volts is coming in
59:10
okay we're not don't okay
59:17
don't think about this right now like don't think about that
59:27
so 12 volts is coming in when we turn our inverter on we take the
59:33
12 volts and the inverter is going to step it up to 120 to power the stuff in our van
59:42
now let's say we're at an RV park or at home we need to charge the batteries
59:52
foreign so what we do is we plug it in to shore power
59:57
there's a switch inside that changes over and turns it into the charger mode
1:00:02
and now it takes the one 20 or 110 you know 120 let's just keep it at 120 volts it takes that and it
1:00:11
steps it down to the 12 volt and yes I know it's technically the
1:00:17
charging voltage so let's say 14.6 for lithium and it comes down and it goes
1:00:25
right here to this post or wherever you're at and it then it goes to the battery and begins to charge it
1:00:34
so give me thumbs up if that makes sense
1:00:40
so once I see a thumbs up or it's helping we'll move on to the last part
1:00:45
which is how this gets distributed to through the distributor to other things
1:01:02
all right so why I hear feedback I'm going to use the green color to show one more time how it works
1:01:10
so we plug it in comes in the inverter charger and if it's 110 20 that we're
1:01:16
using and we're not charging the batteries we're just going to go straight through here boom we're going to you know make some popcorn in the
1:01:22
microwave all right boom straight through but
1:01:29
um when it's charging the batteries we're going to come through and we're going to convert it
1:01:35
charge the batteries when we're not the last part is when we're not hooked
1:01:40
up to shore power so this is when this is off we're going to take power from the batteries
1:01:46
we're going to step it up and make popcorn that way so
1:01:54
that's pretty much uh what it does the this part
1:01:59
is how you are managing and keeping safe your other charging sources
1:02:07
so right here I could have my inputs for
1:02:13
my uh my fused inputs for my DC to DC
1:02:20
and from my mppt sort of like my solar
1:02:26
and I can have them fused here and so even though I'm coming out here
1:02:34
I can still go in uh because it's just the way
1:02:39
electricity works um so I can still charge my batteries
1:02:45
this way through my charger but not only can I this is the wild
1:02:51
thing about electricity so I can still charge while discharging
1:02:57
okay it's it's a wild so that's I completely understand when it gets confusing
1:03:05
and you're really worried about you know blowing something up but
1:03:11
um remember if you have it fused at the end of the day it is 12 volts you
1:03:16
know you're not on the 12 volt side you're not working with high voltage necessarily but
1:03:24
on the AC side AC side you are
1:03:31
so um that is dangerous so the 12 volt you know you do have high current if you're
1:03:37
working on the inverter side like up to 300 amps for example AC side you don't have the current it's
1:03:44
the high voltage that's dangerous and let's hop back over here to this one
1:03:50
drawing and then I will take more questions so go ahead and get those questions going
1:03:57
um I'll probably end this here in just a few minutes uh but over here on the computer
1:04:04
this right here so we didn't talk about this so this right here is
1:04:11
this so this is the wiring
1:04:16
so we might do this in a future video but this is the schematic for your
1:04:21
AC side
1:04:26
so you have your ground over here that's going to be the same as the 12 volt circuit
1:04:33
which that can be confusing and then you're going to have your your neutral over here
1:04:39
and then you're going to have your hot up here your line coming in and once you have those three connected
1:04:46
then blue c is going to give you these three screw these four screws and each one of those is going to be the Hot Leg
1:04:52
for each of the AC loads but that might be for a different video
1:04:57
I know this is getting a little heavy right now um but yeah happy to talk about this we got to
1:05:04
do it in the van hook it up anyway so it'll be in a future video to show you how to do it safely
1:05:10
okay but yeah that's pretty good segue from the uh the video that that launched this afternoon
1:05:17
um see who else we got watching here yep so Peter
1:05:25
I'm glad that helped
1:05:36
all right so let's see what else here
1:05:41
I think that's about it do I have anything to show you guys
1:05:55
all right I will uh stand here for about couple more minutes and see if any
1:06:02
questions come through I'll do my little Spiel here
1:06:09
um if you guys haven't checked out if there's anybody new that's watching uh we have a
1:06:16
van Builder cheat sheet and I talk about this a lot because I really think it can help anybody
1:06:22
um if you go to Van builderhq.com you can sign up for it you may be asking what is this what's the van build cheat
1:06:28
sheet it's essentially an Excel sheet that I put together over 250 curated items that I've put in vans so for
1:06:35
example we were just talking about the renergy 12 volt DC to DC charger
1:06:42
so boom right here we've got the link to Amazon for that charger we've got all of
1:06:47
the fuses so remember I was talking about blue c system Mega fuses so I've got a link to the Lucy system Mega fuse
1:06:55
in the document and the most important thing other than the Fasteners and insulation Roofing
1:07:02
solar as the tool section so tools are very helpful all the stuff here all the crimping uh
1:07:09
heat shrink and hydraulic crimpers are all here that I use to build the vans
1:07:14
so when you get to that point and you've already gone through your whole circuit you got everything ready to go and Rick
1:07:20
getting ready to make the wires you need to strip crimp them and then heat shrink them all that stuff is on this list
1:07:27
so you guys can just click away and it is the stuff I'm using the shop right now so the tools on there are the stuff
1:07:34
that I'm using so if you think it's going to be helpful for you which I really think it'll really help you out especially if you
1:07:40
are DIY and you need some help uh just getting the kick start and you don't
1:07:46
want to waste money on searching around for tools maybe buying the wrong thing and you want to save time it's all in one place on the
1:07:54
sheet you can go to vanbuilderhq.com and pick this up
1:08:00
and I'll just quickly put the link in the description here
1:08:05
and you guys can click on it and download the sheet all you gotta do is completely free 100 free just put your
1:08:11
name and email address it'll come straight to your inbox you'll get this form and you can really just do whatever
1:08:16
you want to with it but when you go back to it I will be updating this throughout
1:08:21
the year some more products will come on here for example um Nick earlier we were talking to him
1:08:28
and he was looking for a fuse panel so one of these blue sea system fuse panels
1:08:34
there's a new one that I like I didn't put it on here so I'm going to go in here I'm going to update the list
1:08:40
but yeah DIY van build cheat sheet click on that link I really think it's going to help
1:08:46
you guys out and I appreciate you uh watching the live stream
1:08:51
um asking the questions uh definitely here to help you guys out with your DIY build or
1:08:58
um really anything you know uh van related we're uh we're building that you know
1:09:04
power system out it's everything's looking really good um probably next week is when I'll
1:09:10
actually start cutting the wires I need to measure a couple things I need to get some more uh like 10 and 12 gauge
1:09:18
um wire for the other circuits uh because it's getting exciting once I got everything laid out and I know where my
1:09:24
wire runs are on the floor after doing all those cutting for the shower and the flip and fold seat
1:09:30
we're actually going to get to a point where we can take the floor out prep it paint it for the epoxy and then put the
1:09:38
lawn seal on it it's really going to start to look like something but we still need to cut up the hole for
1:09:44
the shore power and have the trunk this comes down for the Dometic RTX 2000 air
1:09:51
conditioner so that should be coming maybe becoming at the end of this week
1:09:56
um the air conditioning unit uh yeah things are gonna happen quick it's gonna be exciting so you guys
1:10:02
actually see it unfold so get your questions ready uh to ask as we go along in this journey and I really appreciate
1:10:09
everybody watching the live stream checking out the uh the video that we just published today about off-grid
1:10:14
Power Systems kind of how to help you guys design your layout where to put the batteries where to put the inverter
1:10:19
charger um and it's really how I did it uh you know there's multiple ways you can do it
1:10:25
but if you want to do it how I did it these videos should help you out as well as
1:10:32
uh yeah some of the cheat sheet stuff to uh help with the parts but that is going to do it for our live
1:10:39
stream tonight again thank you guys so much for subscribing checking out the channel checking out the video that just
1:10:45
launched today and I look forward to more comments and questions in the future and we'll see you again on a
1:10:51
future live stream oh one more hold on
1:10:57
uh let's see one more item I'm looking for is a heavy duty door straw door
1:11:03
slide uh bottom mount all right Peter let's do it
1:11:08
really quick so
1:11:13
bottom mount drawer slides let's go find one really quick
1:11:37
so let's hop over here to Amazon so these drawer slides everybody knows
1:11:43
that these These are the kind of the side but you were looking at the bottom mount
1:11:49
and I can understand why because the bottom is going to make it a little bit easier to mount however
1:11:54
those are kind of tricky to find let's see if this might be something close
1:12:11
um I'm we're kind of impressed with this stuff on uh you uh Amazon
1:12:18
let me click off let me click on my face let me see which one I ordered recently
1:12:24
because the company was very very good quality so let's try to stick with the same company
1:12:30
okay so I just ordered this company it's uh
1:12:35
you know it's some crazy name um let's see let me share it
1:12:42
okay okay now this is not the bottom mount but since we're live here let me show
1:12:49
you what it looks like
1:12:59
so this is the 500 pound version and this is the I'm using the 18 inch version of this
1:13:06
so this thing is Beefy but this 500 pounds uh it's extremely Overkill I just
1:13:11
got it because um I'm using this so that you can slide out the toilet so this guy
1:13:20
and you can use it while sitting on the drawer slides so
1:13:26
it'll withstand 500 pounds you want to make sure that you get the Locking version so the Locking version
1:13:32
has this tab okay and so when you push down on this tab it unlocks this channel
1:13:39
and then when you get to the end it clicks you can kind of see
1:13:48
so it'll lock in three different positions so right here is locked
1:13:54
and when it opens there's a click
1:14:00
right there you go so that's that's locked out at full
1:14:05
extension and then you come back in
1:14:10
now it's not locked it'll come out but see watch it'll stop right right here
1:14:20
and then it'll then you push it in and it locks back in actually it's two positions I thought was three
1:14:27
this guy is Beefy
1:14:34
okay that is the like side mount
1:14:39
um but you want to make sure you have it with the lock and then you can click on here hold on a
1:14:45
second there we go you can click on here make sure it's with lock and then up here you have the
1:14:51
different links uh but I this brand this weird aoli
1:14:57
aloe Shang store uh the quality from what I bought is good
1:15:04
now for the mounting that you wanted um like this
1:15:12
I do not know of one that has that high weight rating so I'm not sure
1:15:19
if I were you if you are you've been using 80 20 or something like that if you can make your own
1:15:26
side to mount it to that would be my that would be the way I go
1:15:33
find something you can mount it too
1:15:40
I'm gonna look real quick uh before I get off the Stream
1:15:57
yeah because they are drawer slides they are meant to be you know and like it mounted to a drawer
1:16:03
style fashion so
1:16:08
I know what you're wanting to look for I just
1:16:13
it's something that um
1:16:20
may be difficult to find
1:16:25
so here's this one but it's not a lot it's not locking
1:16:30
um
1:16:36
all right let me change my search so let's go under mount
1:16:54
yeah the undermount is gonna be hard um especially to get locking
1:16:59
uh so see if you know you don't have to get 500 pounds like you just said uh like a 260 pound that that's gonna work
1:17:06
perfect for you no no problem at all um
1:17:11
it really just depends on what you're doing uh but my go-to is to make sure it's a
1:17:18
locking drawer slide and you want full extension locking because what will
1:17:24
happen is if you don't get full extension then your drawer shelf or whatever you're using is only going to come out
1:17:30
you know halfway or something like that
1:17:35
um so you want to measure the back of the shelf or drawer wherever
1:17:40
you want that to come out to that is your that's the distance of the number
1:17:58
all right all right guys it is almost 11 o'clock
1:18:03
Eastern Standard time so I'm gonna sign off if you guys have any more questions related to this put that in the comment
1:18:11
section below and uh be happy to answer that in a future video um I think we got like four more
1:18:16
questions that came up uh on the comments for the channel so I'll work through those see which ones I can
1:18:23
answer um I'll do that tomorrow and then um yeah hopefully this was an
1:18:29
unplanned live stream but it was very useful we got a lot of questions a lot of participation
1:18:34
um uh oh yeah Nick actually mentioned that a
1:18:41
byc has a chart all right we're gonna go back we'll we'll go back over that later
1:18:47
in a different stream gotta hop off here um yeah so it's possible that the power
1:18:53
system I may have the 80 20 cut and maybe we'll do a live stream on where I get with that but uh
1:19:00
once again check out vambitterhq.com sign up for the DIY van build cheat
1:19:06
sheet subscribe to the channel if you're not subscribed yet throw us a like on this video if you liked it if it was
1:19:12
helpful to you share this with uh somebody that you think might help out and once again keep those comments
1:19:18
questions coming and uh we'll see you guys in the next live stream
1:19:24
[Music]
#Campers & RVs
#Hybrid & Alternative Vehicles
#Motor Vehicles (By Type)
