Ford Transit Rear Tire Carrier Install Flat Line Van Co.
11K views
May 2, 2025
Have questions? Ask in the Chat! Don't forget to check out Odyssey Custom Vans latest build currently For Sale here: https://www.odysseycustomvans.com/ Whenever you’re ready, there are 2 ways we can help you: 1. If you need a vetted parts list, download our → FREE DIY Van Build Cheatsheet to help you save time and money on Van Parts and Gear: CLICK HERE: https://vanbuilderhq.com/ 2. If you want to get Done-For-You Van Build help, book a → FREE Consultation with my Calendly Link: CLICK HERE: https://calendly.com/odysseycustomvans/intro-call
View Video Transcript
0:01
[Music]
0:58
w
1:04
[Music]
1:19
hey everyone welcome back to the live stream tonight if you just join us for the previous live stream we were upholster we uh finished doing our VY
1:27
graphic on the acrylic piece that we upholstered for the back of the battery
1:32
system on the van I'll show you a little sneak peek of that it's right over there we'll be right back there in just a
1:38
second um I just fixed the microphone so that's why we had to redo this one but
1:44
uh everything's good now so everything sounds great we're going to keep on going this video you guys are here for
1:50
the Flatline vanco driver side rear tire carrier install so instead of going step
1:55
by step uh as we do pretty much through everything this live stream is going to go over uh some Pro tips that uh of some
2:02
things that I ran into during the install that you guys might find helpful
2:08
if you're getting ready to do this and you don't want to deal with them has to do with the brackets has to do with uh
2:13
drilling some holes and stuff like that so we're going to go over all that um and that's pretty much going to be the
2:18
live stream this afternoon we have the questions opening open in the chat if you guys have any questions um and you
2:25
want to uh hop in the chat and ask me those questions uh I'd love to Sam the computer right here is away from
2:33
the van so I might have to jog back and forth but yeah let's go ahead and get
2:38
started I'm going to hop on over to the other camera and we're going to go from there so let's make sure everything's
2:49
working looks okay had a little audio issues earlier so I'm
2:56
hoping this is going to work and we're g to go from
3:02
there all right let me get this camera dialed in really
3:11
quick all right yeah the feed looks pretty good okay all right let's go ahead and get started we've
3:17
got the back side of the door um actually I'm going to zoom into this
3:25
panel because I told you guys that if you were jumping from the P stream to this live stream that I would talk about
3:31
it so this right here is what I just finished working
3:38
on so we're just going to talk about it real brief we're going to get get the Flatline vanco rack but so this is what
3:45
I made it is uh upholstered panel this is a piece of uh Birch and we painted it
3:53
and then we wrapped it in Marathon um fabric so so the gray
4:00
Heather we have our etched glass logo on there and then this is going to slide in
4:08
uh we still got to put some pieces of 8020 to uh get this into its
4:15
spot but pretty much all we do is just take this and then we're going to get a
4:27
[Applause] screw I'm going to come in
4:42
here and again this is just temporary but I just wanted to uh show you guys
4:48
this tonight because it's pretty exciting so there you go so we've got our nice got a logo there kind of
4:54
covering everything up uh I left this bottom space open because this is where we're going to have the information
5:01
coming out of the inverter and then your indicator lights for your Renegy system um it's important to make sure that you
5:08
can see them and see what they're telling you uh but if you want to know
5:13
how to do this uh acrylic panel you can go to the previous live stream check it
5:19
out and it'll walk you through the process but it's kind of like a
5:25
signature thing I'm doing on my van builds um not sure if everyone's going to like it but
5:30
but uh having done the whole car customization thing growing up um I kind
5:35
of like the way it looks how you can see the internals but you guys are here not for that you're here for the rear tire
5:42
carrier so let's get this reframed and let's start talking about
5:49
this so make sure my audio is
5:56

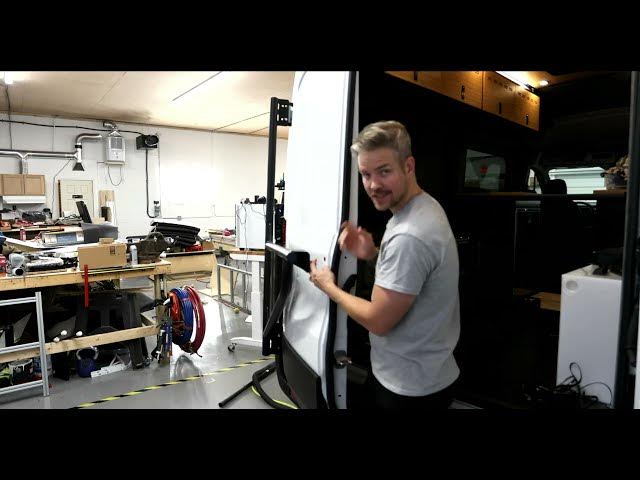

good yep all right so the Flatline vanco rear
6:02
tire carrier this is Loosely on here because
6:09
we're going to be doing this together tonight but here's the carrier itself
6:15
it's kind of what it looks like it's Loosely on here like I just said it's just got two bolts uh the main point is
6:21
this right here is the piece that we are working on at the current moment so what
6:27
I've done is you're you're going to have a template in your kit and you're going to need
6:32
to uh put the template on it goes from here down actually from here down and it
6:39
kind of comes into this right angle uh find your hole drill a pilot
6:44
hole and then you know enlarge it to the drill bit size that they recommend using now when you're done with that
6:51
that will be where this bolts do so it's I mean that's pretty straightforward
6:57
here's where the challenge comes in you also need a hole here some Ford transits uh I've
7:05
noticed this one did not have a slot from the factory I don't know if it's because it's the 2020 model year or
7:12
whatnot but there's a slot over here on this side there's not a slot on this side so what I had to do was I had to
7:19
put this internal bracket in drill from the inside out and then relocate this hole hopefully you don't have to do that
7:26
because this was pretty challenging uh it's a visual spot it's a spot you don't want to mess up on you want to drill
7:32
once get it right uh because this is where you open the door all the time so
7:37
this is exposed so that was a challenging part the other challenging part is the actual brackets
7:46
themselves so you'll need somebody to help you I tried to do with a jack stand and just lower loosen one side at a
7:53
time and that tended to that did not uh work out the way that I thought it would
7:59
um um so uh had another set of hands come in
8:05
and we did the bottom bracket kind of tilted the door out did the top bracket tilted it back
8:10
out come to find out this top bracket up here it really has the fitment of this
8:17
has to do with the alignment of your door so if this door is aligned properly
8:22
from Ford and your body body panels here are riveted and they are all like
8:28
they're supposed to be you're not going to have an issue however on this door the issue that I
8:38
had here trying to make sure that this is in
8:43
frame for you guys the issue I had was this bracket up
8:51
here and I may move the camera um this bracket up here was
8:57
touching the door hinge so the bracket was on but it was uh
9:04
touching this this part of the van so this body panel so if I had shut the
9:09
door it would have made a little Dent inside the back of the van so what I had to do is I had to actually take this off
9:16
and I had to grind down that 90° corner to more of like a 45 and then have like
9:22
a nice bevel on it that gave me enough room so that when this is fully closed
9:27
it's not touching anything the brackets are aluminum so luckily you know they're not going to corrode too bad spray paint
9:35
it with some matte black spray paint that Fusion spray paint and um it was uh
9:42
it worked out perfect so let's see here there we
9:48
go away from my computer so I need to make sure you guys can see me um all right so that actually worked
9:55
out pretty good this was a challenge over here the good news is I've fast forwarded
10:01
everything so I've already did rest preventative on the inside of this uh that bracket is
10:10
actually right
10:18
here so this is what the bracket looks like and so what this is going to do is
10:25
uh let's see here one one side's going to go like this and then one side is going to uh be over
10:32
here so you both you have up and down movement here and then in and out play the one with the in and out is the outer
10:38
bolt and the one with the up and down play is the uh this side bolt that's going to go
10:46
in uh let's see how that's looking on camera really
10:54
quick okay looks pretty good
11:02
all right so the first thing that I'm going to do is I'm going to come in
11:07
here and we need to get our
11:14
bolt so if you were installing this again this is not really a step-by-step install video this is I'm really
11:19
pointing out all the issues that I had so that when you guys get ready to approach this you're not having these issues so check your brackets to make
11:26
sure that when you shut the door they're not p pinching into the van body itself
11:32
so check that carefully um actually before you do that you need to make take a permanent marker
11:37
and mark for your um uh your door alignment so you need a
11:43
top Mark a bottom Mark and a side mark because you need to when you put the door back on you need to get the bracket
11:49
on but you need to reset the door so that uh it's an alignment and you need
11:55
to make those alignment marks long don't make them short because the bracket from Flatline vanco is going to cover up
12:01
those lines and you won't be able to see them if you don't make them long enough and it defeats the whole entire purpose
12:07
so do that check the brackets make sure they do not cutting into your van because that would be you know it's
12:13
pretty bad um and then once you do that go ahead and uh test fit the rack so don't go
12:23
ahead and commit to tightening down those uh bolts yet uh put the rack on
12:28
there there make sure everything fits and it's an uh rough alignment and then go ahead
12:35
and cinch down on or Torque down the Brack the U the door hanging uh
12:41
bracket the hinge bolts once you do that take your four
12:46
screws Loosely put on this uh rack and then put it on so that you can do what
12:54
I'm doing so see how it's just it's ever so slightly just I mean I can move
12:59
this take this get it in place and then what you want to do is you want to go ahead and tighten
13:07
down the bottom one and the top one and you want this whole rack to be away from
13:13
the van so don't slide it into the van because this is going to cut into your paint down here at the bottom and uh
13:21
it's going to rub up against your plastic so you want to have your whole the whole rack pulled out and
13:29
pulled out from the top all right uh this is all stuff that
13:34
uh I didn't find uh until I did it so pull out from the bottom pull it from
13:39
the top top and then go ahead and tighten the top bolt down just one and the bottom one just one and then that is
13:46
going to make sure that you can verify where your hole is now the template should be accurate
13:54
but you always want to double check this stuff um you know somebody could have welded something something off a little
13:59
bit somebody could have trust me even though you have a template do
14:06
this put this on and that way you'll know that everything
14:11
is as close as it's going to be when you get done go ahead and take a
14:18
center punch and just do a little punch down right here and then look at your uh
14:25
template that they give you and see how off it is if it's spot on cool move
14:30
forward if not you're going to want to use what you just did here as your
14:36
reference and not uh what you were using from the template
14:42
hopefully that makes sense then you're going to drill the hole and there's two sheets of there's a
14:49
thin sheet of sheet metal and then there's a reinforcement tab in the back so just be very careful when you're
14:55
drilling this that when you go through the sheet metal you still got some more metal to keep going and not only that
15:03
the mechanism that opens and shuts the door right here the cable the cable is
15:11
right here so once you make it through to the other side don't go crazy you know
15:19
drilling out the hole because you might start to cut at that cable that's on the inside that is why they recom or they
15:27
ask you to take take off this interior panel not only so you
15:33
can put this bolt and Hardware kit on but I'm guessing because uh they would
15:38
like you to be aware of that um uh piece of piece of the cable that's
15:45
in here also you're going to have to take all this off take the plastic off um
15:52
from Ford because you want to get up in here not only for this Hardware but once you drill the holes you're going to get
15:59
a can of spray paint and make sure you do Rust preventive on both of the holes before moving forward go ahead and let
16:05
that dry so we're now at the point to I can reinstall this back bracket
16:11
finally uh we're going to take this bracket we're going to take our little seiling washer and we're going to put
16:17
that on there and then we're going to put this in the bracket just like just like that
16:24
uh and let's see if I can zoom in to make this a little B more enjoy
16:33
able
16:42
okay okay so here's the bracket here's the bolt when we go inside there's there
16:48
there's a wire so I act like uh act like this is the wire coming
16:55
holding that coming down you're going to take the bracket and you want to go around the
17:00
cable and then put this into place this needs to go around the cable first
17:06
before it goes in all right now we take this don't drop this screw uh it would not be
17:13
good cuz I think this screw is oh no okay never
17:20
mind it is magnetic all right so let's
17:26
go going to put this in here
18:00
okay I'm going to take the bracket back out all right we're looking
18:06
good see what we got going on here all right next step is I'm going to
18:12
take the door and I think for this video purpose
18:17
I'm going to lock it into place so I can have a good camera angle
18:23
for you guys
18:36
all right let's change up the
18:46
camera there we
18:55
go all right we're going to go and get some some gasket
19:02
maker as much as I want the flatl vanco part to seal a well we want to double
19:10
check our make sure we can seal all the water out so we're going to use our gasket
19:17
maker to do
19:24
that and I'm just going and grabbing some gloves here so I can
19:29
get this ready so once we put the gasket maker on there I'll be back over by the camera and we
19:34
can start actually bolting everything up and tightening it down and then we'll actually reference the manual to go over
19:41
everything and should be it it should be pretty
19:49
straightforward I feel like it's good to do uh what not to do video versus a what to to do
19:56
video all right so I'm at the other side of the shop over here
20:04
so I'm just I'm cleaning out this uh gasket maker that I used
20:13
earlier all right so this is black RTV that's
20:20
basically what it is and I just got black RTV because
20:26
uh it looks better than red RTV all right so we got that we got our
20:31
bolt bracket all right let's go back and we'll change cameras go to the other
20:43
side there we
20:57
go
21:10
okay so we're going to put the RTV on this back side
21:16
here you guys can see we've already rust prevented this around the door so we're good and safe there this is what we
21:24
really want to make sure that we have on here and we're going to put it on this
21:42
side so I found out what happens when you uh install this on the back
21:48
door uh this outer sheet metal this back door is really thin it's very thin and
21:57
uh that is not good for when you're
22:02
drilling because it makes it pretty uh weak and so what's happened is this has
22:10
uh kind of bent in just a little bit
22:15
um so there's a little dip so it's it's not going to seal like I don't it's not
22:21
going to seal like it was supposed to all right let's get our bracket in
22:27
here
23:03
now to get this uh bolt on the outside I had to actually use a uh clamp like this
23:09
to actually cinch it down go fix the camera lighting looks
23:17
very strange see
23:26
here there you
23:34
go get my wrenches so for these bolts that they Supply you it's a
23:40
9/16th uh
23:48
wrench and then we're going to have one washer for the
23:56
outside
24:25
okay the so this is the easy part believe it or not the hard part is going
24:30
to be when we go to um
24:37
uh first I got to get around
24:43
this go the hard part is the other there the smaller bolt it's going to be the
24:49
that's going to be the challenging one to get through
24:55
here all right now let's let this fall
25:02
back okay so we put the RTV on
25:26
there
25:33
all right so now we're going to need our clamp go the rest of the
25:40
distance and the reason I'm doing this is to get the nut on that's the only pretty much the only
25:56
reason I mean your van might be different you might actually not have an issue
26:03
with
26:12
this okay we
26:26
go
27:46
so what I did is I just removed the ceiling washer I'm going to put it on
27:51
the outside because there's uh the thread length is not long
27:56
enough to put it on the inside
28:01
so it's another interesting little
28:14
hiccup all right now I can actually get I have enough threads now to actually pick up on
28:24
something so we're going to put this ceiling washer on the other other
28:56
side
29:03
yeah this just needs to be a longer bolt there's not there's not a longer bolt in my kit for some
29:17
reason we may come back to this bolt after we tighten everything
29:26
down
29:34
before we get it too tight we need to take our smaller bolt and bring it through this
29:46
bracket okay and I'm actually going to verify
29:51
the uh allen wrench key size first
30:09
so it looks like it's
30:14
3.5 for the inner door bolt for the Allen key and then we've
30:22
got let's find out what size nut this is
30:41
716 for the
30:56
net
31:13
this is going to be tough cuz we're going to uh we might
31:19
actually um this is going to be hard not to drop
31:26
this also be careful as you saw me run into my
31:34
own clamp all [Music]
31:39
right getting more technical
31:55
now all right so without dropping the screws in the
32:01
door see if we can get this on here okay we got the washer got her nut in
32:11
place okay man that's always the hardest right
32:18
[Music] there this thing is
32:26
dangerous
32:37
yeah if you drop something into this uh door cavity you are it is not going to be
32:44
good just letting you guys
32:56
know
33:11
so I want to tighten this but I don't want to tighten it so much that it actually starts to bend this part of the
33:17
door frame which okay this is about as much as I'm going to do
33:24
that I can kind of see like a dip forming
33:36
so I'm going loosen up on the other
33:55
Bolt
34:36
okay this is good yeah loosen up on this bolt and
34:42
just come in with this
34:55
one I feel good about
35:04
that before we get too far I'm going to get some uh denatured alcohol and clean this up because I've already
35:11
got stuff on the
35:25
door
36:20
all right so let's go ahead and we're going to tighten down this uh outer
36:25
Bolt
36:43
[Applause]
38:01
so I'm actually going to take this nut off the backside and I'm going to put on
38:06
some uh
38:19
locktite I'm putting on red locti by the
38:25
way
39:07
man this bolt is just
39:17
not yeah this has to be the wrong bolt in the kit this B this bolt is just not long
39:24
enough see if I have a spare spare
39:50
bolt yeah they don't there's no other bolt in the kit this has this has to be the
40:25
bolt
40:38
it's a 3/8 bolt they give you an one inch
40:55
Bolt
41:09
Perfect all right there we go okay so I'm going to replace it with
41:16
a stainless steel 38-16 in and a quarter
41:25
Bolt
41:48
this is going to be fun trying to get an allen key on the
41:55
inside
42:20
so 732 Allen key is what I'm using for this Bolt
42:50
yeah that's much better
42:59
so now we can grab our ceiling R uh washer with our seal on it which is what
43:06
we're supposed to use we can put that on
43:11
there then we can take our nut and we can put that on there all
43:17
right that's good that's really good now we are getting
43:25
somewhere
43:31
got to make sure I do not drop this Allen
43:55
key
45:04
okay we're good let's move on to the next part of this
45:24
install
45:42
all right we're going to come over here to pull out these uh side pieces let's
45:47
zoom out on the camera all
45:54
right
46:08
so do the top and the bottom and then we'll come back in here and we'll tighten up uh these plate bolts um I
46:15
think they want you to do that before you do all this but I'm not undoing that and I can get I can probably get a
46:21
wrench behind here to tighten this down
47:21
now these are going to come with washers so just make sure you grab a washer
47:26
and go ahead and put it on
47:54
there
48:06
as you're tighten this up make sure you keep the rack pulled uh out towards
48:24
you
49:59
[Music]
53:25
all putting those other screws away and somehow I uh I'm missing one of the screws I don't
53:31
know where I put it it's for this little bumper pad that sits right here at this bottom so it's
53:39
it does actually connect it to the van it's just there to uh just to have a
53:44
little bit more support again just make sure you're
53:50
pulling out
53:55
away from the
54:17
van you guys were here earlier in the live stream this top bracket was one that I had to modify just by grinding
54:24
the edges off because it was actually I couldn't get it in alignment with the uh
54:30
Ford Transit door and it was uh actually kind of gouging the the body
54:38
so I think it's more of a Ford thing not a flatline vanco thing
54:44
because had to do with the body panel the Flatline vanco bracket looked
54:49
like normal it looked like how it's supposed to be
54:55
all right man that is solid okay
55:01
perfect all right besides that one little bracket over here that I need to get to um I'll have to come back to that
55:08
later cuz oh here they are I found them good good good
55:24
good all right let's go ahead and bring this other Hardware over to
55:29
the build area so we've got a bracket that goes
55:36
here uh with four bolts it's two plates um then we got
55:42
some Hardware to actually hold the spare tire
55:48
um yeah so that is our that's our next step I'm going to go ahead and put this little side bracket on before
55:56
or the part gets lost in the shop Parts don't get lost and they're
56:03
still here they're just uh they might be somewhere
56:09
else um I think this is the reason why I what
56:15
going to delay this video is all this little uh all the logos the dealerships
56:21
put on here and to get in your way of working on the
56:53
van
57:01
I don't know the technical term for this little plate is but it's just like a little assistance
57:21
bracket okay all right that looks good let's
57:26
tighten that one down and then we can move to uh getting the hardware on here to actually get the um spare tire put on
57:35
uh I see a lot more people in the Stream so I'm going to just quickly go over the kind of pain points I was going through
57:41
when I installed this so I actually have the instructions and we're going to go
57:47
through those at the end if you guys are interested you can stick stay till the end um but we are using the uh the PDF
57:55
to go through and install uh I'm making this video it's not a step-by-step tutorial but I'm making it because
58:02
there's a bunch of things that happened while I was doing this that don't normally happen so this upper bracket
58:09
right here it was when I put it on even though the door was in
58:14
alignment my Ford Transit van the door actually goes into the van about eighth
58:20
of an inch more than I have another van outside uh and that cause this bracket
58:26
to actually pinch on the inside so I had to grind it to make that pinch go away
58:31
so it wouldn't tear up the van and then I R spray painted a matte black it looks great it works fine uh again I do don't
58:39
think it has anything to do with Flatline van Co it's the Ford Howard this van got built on the assembly line
58:45
down here in the bottom the bracket was not an issue real quick over here this
58:51
was an issue on the van because uh uh the template over here I wanted to
58:58
make sure I double checked where my hole was and I did the template did a whole
59:04
center punch and then I went and just manually put this on and it was a little offset so I went with my bolted in
59:13
option just to make sure that my hole that I drilled was perfect so I did that and then on the inside here there's a
59:20
hole that you use to bolt the bracket on uh on the other side this is supposed to
59:27
be a slotted hole from Ford it's on that door it's not on this door
59:33
so what I had to do was drill from the inside out and then relocate this hole
59:39
and this hole is one of those where if you mess up it's you're going to visually see it because you're going to
59:44
open this every time so I needed to make sure it was perfect so that took quite a bit of time I did not do that on
59:52
camera uh I was going to make it did this whole tutorial video but I decided to do this
59:57
cuz you start making the video and then it just takes forever so it's easier for
1:00:03
me just to do a live stream for you guys um I'm going go actually go see if we have any questions here you guys are
1:00:09
welcome to ask questions tonight uh as we're working through this uh it does not have to be on what
1:00:15
I'm working on I'm actually going to move the camera so you guys can
1:00:22
see possibly a little bit better there we
1:00:30
go okay let's keep going I'm going to tighten this bracket down here anyway
1:00:36
that was that's a summary of all the issues that I had going on with uh installing
1:00:42
this so um yeah hopefully that helped you
1:00:53
out
1:02:39
all right pretty good so I'm pull out the laptop and let's keep on going with the regular
1:02:47
install
1:02:53
method
1:02:59
all right now we're getting ready to put on the apparatus that holds the spare
1:03:06
tire so this big thing right here and we need to take these two
1:03:14
plates out of this
1:03:21
package yeah so now after all that fun stuff we are we're actually back on the normal installed path with the
1:03:30
instructions these two plates are going to go behind here all right and then you're going to
1:03:36
have the bolt go uh into this slot the square slot and
1:03:41
then you're going to take this and put it onto
1:03:52
the onto the van okay so
1:03:57
this let's figure out what orientation we want here okay the circle part goes
1:04:05
out the adjustment Tabs go on the
1:04:10
inside all right let's go ahead and do this now I'm not doing it I'm now back
1:04:19
to the instructions earlier I was not doing the instructions sometimes I
1:04:25
deviate from the instructions only because not trying to be a not all but
1:04:32
like some things I might just want to do a different way to get to the same point if you guys
1:04:38
know what I
1:04:53
mean so what I'm doing right now this was
1:04:58
supposed to be done earlier but I like to adjust this rack to kind of have get I
1:05:07
want it to kind of find its home so it's not binding anywhere and this I didn't want to put this on so would it would
1:05:14
stay nice and light as light as possible so I can move it
1:05:23
around
1:05:39
I'm I'm going to jokingly say this but you might want to wash your van behind here cuz it's it's really hard to get
1:05:45
back behind there when this is all said and
1:05:53
done
1:06:09
but if you guys are watching what I'm doing you can see it is
1:06:14
possible to do this this way just be careful because these bolts these bolts
1:06:20
may fall out that is highly
1:06:38
likely come on stick with me we're so
1:06:44
close there we go these uh drilled holes over here
1:06:50
they're on the right side they go they go to the right side of the
1:07:08
van go ahead and double check the instructions okay we're doing a good
1:07:22
job
1:08:12
okay what size are these bolts what wrench do we
1:08:22
need
1:08:52
3/4
1:10:46
[Music]
1:11:17
okay it feels great all right Next Step
1:11:52
for all right so the next thing we need to take is we need to put in the
1:12:01
studs uh right here that come with it uh we need to use
1:12:07
Loctite put them in all right shouldn't be too
1:12:22
hard
1:12:40
so two on the top and then one on the
1:12:45
bottom and these correspond I'm sure they're kind of using this universally
1:12:51
so this corresponds to the if you have a Ford Transit or uh
1:13:00
whatever thread pitch you have I'm not thread pitch
1:13:05
your lug nut
1:13:14
orientation they're using blue I'm using red locktite
1:13:22
because I can't find the blue at the moment but if I were a spare tire carrier on
1:13:29
the rear of a Ford Transit going down the highway I would like to
1:13:36
have blue Lo uh red
1:13:46
locti okay this is really odd what what's going on
1:13:52
here
1:14:00
these are not they're all the same
1:14:05
length but they're not bottoming out that is this one's fine this one's
1:14:12
fine this one's go a little too far then I like it
1:14:18
to go
1:14:26
all right let's see if we got what size Allen wrench do they want for
1:14:52
this
1:16:22
is
1:17:52
for
1:18:03
okay hopefully that is good to
1:18:14
go must be like a safety bar let's get our spare tire and let's let's try this thing
1:18:21
out
1:19:51
all
1:20:00
they do provide you with these security security locks which is
1:20:12
nice oh I'm messing with the come
1:20:21
on
1:20:55
all in all this is not too bad this was the most critical part over here it's the part that you don't want to cheat on
1:21:01
you want to make sure you get it right
1:21:21
so
1:21:51
for
1:22:03
there you
1:22:11
go at these pretty hand tight and let's uh shut the door cuz it's kind of
1:22:19
the it's the test I like to go by to see if uh something is the way it should
1:22:30
be all
1:22:50
right okay I feel pretty good about
1:22:58
that all right let check the door opening now remember when you have something like this you cannot open the
1:23:04
door all the
1:23:21
way hear a little bit of
1:23:29
squeak is the rubber
1:23:42
here oh that's what it
1:23:51
is
1:24:00
okay pretty happy with that that is nice and sturdy all right this is the end of the
1:24:05
video here let's uh try to be quiet so you can hear it
1:24:12
slim all right that's that is pretty
1:24:18
good that is nice and solid all right I
1:24:24
approve okay that was a long video thank you guys for watching um I want to tell
1:24:31
you about two more things we're going to hop on the computer and then we will end the live stream for this evening uh you
1:24:36
get a couple more minutes to ask me a question if you guys do have a question ask it in the
1:24:45
chat first thing I want to go over is our DIY van build cheat sheet if you guys have not heard of our DIY van build
1:24:51
cheat sheet it's awesome you can use it to uh look through a list of products that I have personally personally
1:24:58
purchased on Amazon over the last three years so whatever I put my shopping cart and I bought for the shop it's on the
1:25:04
list 300 250 items right now it's always growing but you can get this list
1:25:11
absolutely free it's going to help you Kickstart your van build and just make things a whole lot easier if you've
1:25:16
don't know where to start buying parts the list is great little sneak peek is
1:25:21
we've got all kinds of stuff we've got Fasteners Electrical uh HVAC stuff like the max
1:25:28
air fan installation Roofing security solar tools tools is uh
1:25:34
probably the best part about this list anytime that I am buying a tool for the
1:25:40
shop I put on the list in a short a couple months we are going to have a
1:25:45
list of going all over these tools on the blog post on the van Builder HQ
1:25:51
website so if you guys have not been to uh van Builder
1:25:56
hq.com head on over there you can also sign up for the cheat sheet there there's a link but there are bunch of
1:26:04
blog posts we've got more coming out in the future but right now we've got stuff on camper van flooring lithionics
1:26:11
batteries camper van mattresses best air conditioning for a camper van uh just a
1:26:17
lot of great information and it's all you know stuff that I've gone through
1:26:22
uh we've got some videos on the YouTube channel going through van floor installation
1:26:28
install and we've got everything from all the layers base plywood uh subfloor
1:26:36
lawn sill epoxy on top and just ways to you know help you guys out so everything
1:26:42
DIY van related is going to help you get your van off the ground start with Van Builder
1:26:48
HQ start with a van build cheat sheet and uh it's just a good good tips and um
1:26:56
ways to kind of jump start the process but if you want to not jump this
1:27:01
jump start the process and you want to go straight to my shop my shop is
1:27:06
Odyssey custom vans this van right here in the photo is the one that we are putting the tire carrier on tonight and
1:27:13
uh if you want to do a quick walk through of the Interior we're almost finished with it and uh this video is
1:27:20
walking through the interior as it was at Adventure vanand Expo so very very
1:27:25
close to being complete we have all of the amenities and systems listed here that's in the
1:27:32
van and I know you guys were excited to see you know just an update on where we're at so I put these photos on the
1:27:38
website just so you can see you know what's happening on the inside of the van some of the components that we're using like the Tetra van floor the
1:27:44
isotherm Cruise 130 fridge uh 420 watts of solar the dedic RTX 2000 on the roof
1:27:50
how we relocate the Ford Transit antenna which is very important so it is not
1:27:57
blocked by the solar panels um I don't see that happening a lot out there nice uh really nice bamboo
1:28:04
cabinets from Flatline vanco we got the adventure wag interior install happening
1:28:10
in this band so it's the adventure wagon interior kit with a bamboo ceiling panel just
1:28:17
ties everything in looks really really good uh that's a short queen mattress so
1:28:22
queen siiz mattress RV short um Queen and very comfortable uh there is the
1:28:31
there are not exterior bump outs they're the interior ones so they allow your uh
1:28:36
to get a little bit more sleeping room um we've got 72 in of room on the
1:28:44
inside we've got the Flatline vanco pullout tray and overhead Shelf exterior light
1:28:54
um and then we finish it off with the f45s awning uh a German Shepherd is not
1:29:00
included she's going to stay in the shop but if you guys are interested in purchas purchasing this van it is
1:29:07
currently for sale if you're watching this video um if you're watching this video it also may be sold but at the
1:29:13
current moment watching this video it is for sale you can contact me at sales ay customs.com that is my direct line and
1:29:21
it's the easiest way to contact me is to click here to schedule a call because this will pop up the appointment right
1:29:28
on my calendar so you'll go through here click on a date and then find a time
1:29:33
that works best for you click submit it pops up on my calendar we can have a phone call about the current vans for
1:29:39
sale on our website if you are looking to get a personal custom van build done
1:29:45
by myself read this left tab it talks about how to uh prepare for a
1:29:51
consultation with me uh so just just a little bit of instructions but something to get prepped for the call and then all
1:29:58
you do do the same thing find a time schedule it book it with me and that's it um happy to uh build your custom van
1:30:08
um there's all kinds of things that we can do as you guys see in the shop some Vans have Tire carriers some Vans don't
1:30:14
some have more solar some have less it's really about your goals and what you want to do when you're out doing an
1:30:20
adventure or on the road and uh yeah we can pretty much do um those things in the shop so excited to chat with you
1:30:28
whether you are looking to buy the van or you're ready to uh get a custom build done yourself uh once again if you guys are
1:30:35
not subscribed to this channel click the Subscribe button give us a thumbs up if you enjoyed it and really share this
1:30:41
video to somebody who needs help they're installing a tire carrier or they're looking they're kind of in the market to
1:30:46
get one and just want to see an option of one being installed this would be a perfect video to shoot their way away um
1:30:52
other than that put questions in the comments uh I'll answer those when I get a chance to get to them also it's really
1:30:58
good to uh find out content for or uh questions to be answered in future
1:31:04
videos so I always look through the comments to see if you guys have some really good questions we'll put that into a live stream other than that I'm
1:31:11
wanted to sign up for the night again hope you guys enjoyed this video uh stay tuned to the next live stream uh where I
1:31:18
will see all you guys right back here in the uh Odyssey custom vans
1:31:25
[Music]
1:31:41
shop
#Automotive Industry
#Custom & Performance Vehicles
#Motor Vehicles (By Type)
#Trucks
# Vans & SUVs
#Vehicle Modification & Tuning
#Vehicle Parts & Accessories
#Vehicle Specs
# Reviews & Comparisons
