Odyssey's AWD Ford Transit: Ultimate Camper Van Build Tour | Adventure Van Expo Chattanooga, TN 2023
40 views
May 2, 2025
Step inside Nick's latest build! 🚐✨ In this video, we unveil the intricate details and innovations of his newest camper van build at Odyssey Custom Vans. Don't miss out on this exclusive tour! Interested in purchasing this van? For More Information & Photos Click Here: https://www.odysseycustomvans.com/ Whenever you’re ready, there are 2 ways we can help you: 1. If you need a vetted parts list, download our → FREE DIY Van Build Cheatsheet to help you save time and money on Van Parts and Gear: CLICK HERE: https://van-builder-hq.ck.page/846c83ab54 2. If you want to get Done-For-You Van Build help, book a → FREE Consultation with my Calendly Link: CLICK HERE: https://calendly.com/odysseycustomvans/intro-call?month=2023-07
View Video Transcript
0:00
[Music]
0:08

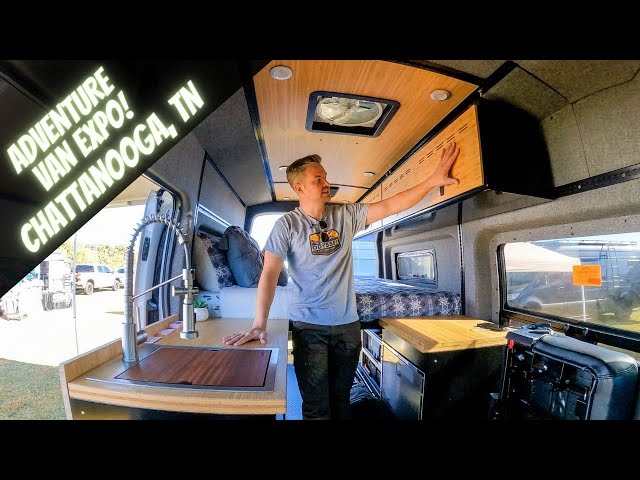

hey guys we made it to adventur Van Expo
0:10
in Chattanooga Tennessee and I'm going
0:12
to do a quick walk through of our 2020
0:14
Ford Transit High roof all wheeel Drive
0:18
Van we're going to uh yeah let's start
0:21
back here in the
0:22
back so for
0:24
Showtime we left the panels off of the
0:27
power system and the water system so
0:29
when we get back in the shop next week
0:31
we're going to knock all that out but I
0:32
wanted to show you the finished power
0:34
system over here before the panels get
0:35
on it so in here we have 600 amp hours
0:39
of lithium iron phosphate it's the
0:41
Renegy smart lithium iron phosphate
0:44
batteries two 50 amp dc todc mppt solar
0:49
charge controllers from Renegy uh these
0:52
are
0:53
awesome this is the new Renegy Rigo so
0:56
this is their off- grid inverter 3,000 W
0:59
pure sine wave inverter charger and it
1:01
has the 30 amp Shore power plug on the
1:03
other side and then finally to uh manage
1:06
everything we have the victron energy
1:09
links
1:10
distributor uh connecting everything
1:11
from the inverter and check up here we
1:15
have our dtic RTX 2000 air conditioning
1:18
unit that's a 12vt
1:21
unit and uh everything's working great
1:24
we tested it the other day before the
1:25
event and uh pretty awesome last but not
1:28
least we got the Webasto
1:30
air toop 40 heater right
1:38
there and finishing off the back we went
1:41
with the uh Flatline vanco 500 lb drawer
1:45
slide pull out tray and you guys saw me
1:48
in the other video this is inside the
1:51
back of the van and we have uh it
1:54
through bolted to the back of the van so
1:56
if you have anything heavy in here you
1:59
don't have to worry about about it um
2:01
not being
2:04
supported uh the van's also coming with
2:06
a lagoon table Mount and we're going to
2:08
have multiple locations that I'm going
2:09
to show you guys where we're putting the
2:11
table um just so if you're inside you
2:13
want to work somewhere prep food or
2:16
you're outside uh we'll talk about that
2:21
too last but not least on the right side
2:24
we have a 40G Northwest conversion over
2:27
thehe water tank and if you guys have
2:30
not seen how over thehe water tank works
2:33
what's cool about not having these
2:34
panels on here and it mounted is you can
2:36
kind of see the inside of how this works
2:39
so there's a cavity here that allows it
2:41
to come over the wheel well and what's
2:44
nice is you get a lot of benefits one is
2:47
you take care of that area where that
2:49
bump is for the wheel well that some can
2:51
be sometimes hard to build around two
2:54
the width is going to give you enough
2:55
space to put a residential Bosch 4
2:57
gallon hot water heater on the right
3:00
back end side so that way when the panel
3:02
comes through here everything is nice
3:04
and clean uh ready to
3:07
go as we're finishing up the back we
3:09
have the adventure W uh we have the
3:11
Flatline vanco bed system so this is a
3:14
adventure wagon compatible component and
3:18
what it does is it allows you to have a
3:20
full bed you can do north south sleeping
3:23
East West
3:24
sleeping it comes with uh an option to
3:27
have a custom mattress if you want to
3:29
have the north south
3:31
option uh but the best part is there's
3:33
six bolts this whole entire bed system
3:35
comes out so if you want to go to the
3:37
store get some furniture um you can take
3:40
this whole entire thing back and use a
3:42
cargo van uh as a cargo van it's got
3:45
really cool mounts for a uh a Molly
3:48
system so this right here for example is
3:51
a first aid kit and the straps in here
3:54
just kind to come down and we can uh
3:58
strap it into place yeah you can put
4:01
multiple things like that I like doing
4:02
the East West option cuz you you have
4:04
this nice platform that you can hang out
4:07
you can sit uh you can mount stuff to uh
4:09
you know at night time if you want to
4:11
put your cell phone over here when we
4:12
get inside we'll talk about the fast
4:14
charged USB ports that are built into
4:16
the cabinets um when we get
4:19
inside but that's pretty much it from
4:21
the back we're going to go ahead and
4:23
take a look at the front so as we walk
4:25
to the front we're coming underneath our
4:26
fyama f45s awning so this is a 10 foot
4:31
awning we do have a outdoor light so
4:34
right here we've got a rigid
4:37
Industries amber light I like Amber
4:39
because it helps a little bit better
4:41
with the
4:42
bugs uh White's a little bright at night
4:44
time so you this is more comfortable to
4:47
have uh for a longer period of
4:50
time when we finish this panel this is
4:52
going to be a really cool part of the
4:54
van we're going to integrate uh 110
4:56
Outlets that are water resistant up
4:59
front there's going to be a lagoon table
5:01
Mount so that you can come out here with
5:03
your induction stove you can cook
5:06
outside the faucet has enough room to
5:08
come out here top off anything with
5:10
water if you're cooking
5:11
outside uh we'll talk about the
5:13
integrated shower nozzle right here uh
5:16
when we get inside the
5:18
van got a little Nook inside here if you
5:21
guys want to repurpose this for maybe
5:22
some shoes or flip-flop sandals anything
5:24
like that you can kind of tuck it away
5:26
into
5:27
here this is a fully powder coated trim
5:30
kit uh down here from AVC
5:33
rig we do have two Ford options we have
5:36
the factory Ford uh step which is really
5:40
nice and also don't forget this handle
5:44
um some Vans do not come with this
5:46
handle I found out so uh throughout the
5:49
people that have come in the van and
5:51
tested it out this is a really great way
5:52
for them to safely get in and out of the
5:54
van so it's a good positive way to climb
5:58
in uh when we get get back to the shop
6:00
we're going to take a little Notch out
6:01
of this and it's going to be a nice kind
6:02
of grab handle to easily safely get in
6:05
the van so come on in the van and we're
6:09
going to talk about what we got here so
6:12
we're going to start the front we're
6:14
going to make our way to the back up
6:16
here at the top we have a headliner
6:18
shelf just a simple headliner shelf uh I
6:21
covered the brand in a separate video so
6:23
check out the channel for that uh this
6:25
is a lightweight shelf and I just say
6:27
that cuz you don't want to put too much
6:29
weight
6:30
the reason is it's not the quality of
6:31
the Shelf it has to do with the mounting
6:33
locations that are available from Ford
6:35
you only have two bolts here and two
6:37
bolts here
6:39
so uh you're asking a lot of those uh
6:42
shelf mounts so having some nice light
6:45
aluminum up here is a good deal another
6:48
video on the channel we upholstered the
6:49
top of this with the same fabric here so
6:52
it's nice and it doesn't rattle inside
6:55
here we've got of our our bunk window
6:57
covers we've got our insulated
6:59
covers um these covers are from Van
7:02
Essentials uh they're really easy uh
7:05
we're going to put them on the Amazon uh
7:08
the DIY van build cheat sheet so you
7:10
guys can check out these what's what's
7:13
nice is you can get the whole entire
7:15
Ford kit uh off of Amazon at the current
7:18
moment and uh they work really
7:22
well last but not least we have the uh
7:25
vent fan cover for the max fan um we
7:28
actually got this from DIY van uh when
7:31
we purchased the max van so this one's
7:34
good as
7:37
well uh any brand of insulated cover is
7:41
really nice just uh make sure that when
7:43
you buy them you kind of coordinate the
7:45
colors cuz there are some that are very
7:47
light and some that are very dark so uh
7:50
if in case matching covers is something
7:52
that's important to you coming on down
7:54
we have uh Ford factory seats a lot of
7:58
uh viewers today that come to see the
8:00
van think that these are Aftermarket
8:02
seats uh they're actually Ford black
8:04
leather seats um kind of a rarity but we
8:07
do have them in this van they're coupled
8:10
with the
8:10
scopa uh swivels so we got the driver
8:14
and the passenger we've also upgraded uh
8:18
this is necessary if you want to do the
8:20
driver this is a uh handbrake relocation
8:24
bracket um it is I don't want to say too
8:28
invasive but you do need to take some
8:30
time and really plan this out if you
8:32
have an inverter down here from Ford
8:34
you're going to have to remove it
8:35
there's no room for it and if you have
8:36
this bracket down here you'll also have
8:38
to remove that so as you guys can see
8:40
this is a little exposed right here but
8:43
I'm telling you it's the best way is to
8:44
leave it just like that um nice and
8:48
simple and that's going to allow this
8:50
trim right here to to swivel and make
8:53
sure that you don't or that you can
8:55
swivel the um driver's seat and and
8:59
we're going to do an overhead shot right
9:01
here of this seat this is
9:04
our fredman seating flip and fold seat
9:08
it is a a two-seater with seat belts
9:12
with an integrated
9:15
table oh yeah just uh get right here and
9:17
we'll switch
9:19
places so right here what's nice is not
9:23
only do you reclaim all the space inside
9:25
the van you have just nice wide area to
9:28
walk around
9:30
but it has a lock down here so it
9:32
doesn't rattle when you're driving it's
9:33
a Positive
9:35
Locking
9:37
uh little mechanism down here so coming
9:41
up from that you have your release and
9:44
then your safety latch so to bring it
9:46
down you just push your safety latch all
9:48
the way out of the way make sure you
9:49
watch your fingers when you're doing
9:51
this once it's out of the way it comes
9:54
straight down this is a table we'll show
9:56
in just a second pop this up
10:01
and then this is your additional two
10:04
seating with seat belts so if you want
10:07
to take some friends you got plenty of
10:09
room we did the adventure wagon bump out
10:13
right here which gives nice Elbow Room
10:15
to your passengers so kind of think
10:17
about their experience back here in the
10:19
seat normally this is a solid wall with
10:22
no window but we got a seol window with
10:25
a vent with a bump out so it's really
10:27
nice and comfortable back here here and
10:30
right along the shoulder we've got a
10:32
quick charge USB a and type c Port if
10:35
anybody wants to charge their phone or
10:38
devices and that is right by the fridge
10:40
Galley so we'll just show you this
10:42
really quick this is
10:44
the
10:46
table it's so easy to set
10:49
up so if you're cooking over here you
10:53
can prep over here onto this surface you
10:55
got your sink if you do want to cook
10:57
inside um I like to cook outside but if
11:00
you do you got plenty of countertop
11:02
space over
11:03
here and uh it's just easy just nice you
11:06
can people can still sit down you've got
11:08
the Lagoon table Mount right here
11:11
there's also an option over here if you
11:13
do not get this seat to put the table
11:15
Mount but you can see that this takes up
11:17
this room to put this back all you do is
11:20
hold the
11:23
latch so I'm going put this on the bed
11:25
real quick so this safety latch again
11:27
was your fingers and just kind of put on
11:29
your
11:31
knee flip this
11:34
over slide it right
11:36
down into the pocket bring the chair
11:40
up just do a little latch
11:43
here you're
11:45
good we'll talk about um men the entire
11:50
interior yeah so as we're walking
11:52
through the van you'll notice that
11:54
there's a very nice finish and panels so
11:57
that finished upholstery is from from
11:59
Adventure wagon so the
12:00
entire uh inside of this van is an
12:03
adventure wagon system so it is an
12:05
upholstered panels that are thermoform
12:08
plastic so they're really
12:09
nice lrak is the component that actually
12:12
holds the upholster panels in and their
12:15
A-frame is an orange frame that is
12:18
riveted to the van that is a structure
12:20
that holds everything what's nice is
12:23
both of these uh cabinets so these upper
12:26
cabinets and the two kitchen galleries
12:28
are from a company called flat Lan vanco
12:29
the same as the bed system and these
12:33
cabinets uh have Adventure wagon
12:35
compatible mounting locations so we have
12:38
this uh kitchen
12:40
Galley uh bolted to this L trk we have
12:44
this kitchen Galley bolted to this L TR
12:47
so safety is a big uh thing that I um
12:52
have a big proponent of and these
12:54
kitchen gys are positively bolted to the
12:56
van um just to keep you safe uh you know
12:59
in the event of an accident you want to
13:01
make sure all the weight inside here
13:03
does not
13:04
move uh same thing with the Freeman seat
13:07
we have 10 grade eight bolts that are
13:09
holding the seat together uh really four
13:12
would be sufficient but 10 is in the
13:14
mounting plate and we directly bolt that
13:16
to the van chassis so we don't mount it
13:19
to the floor we mount it to the van
13:20
chassis itself so metal metal to
13:24
metal um yeah but the inventure wagon
13:26
kit is a great way to uh be flexible
13:29
with the space so you can add upper
13:31
cabinets they're mounted to the L TR you
13:34
can put them up you can take them out uh
13:37
there's other manufacturers that make
13:38
products So Soft bags some people like
13:40
to do the hard upper cabinets over here
13:43
and do soft bags over the head um you
13:47
know just so you're not bump your head
13:48
in the middle of the night so there's a
13:49
lot of different storage options we use
13:51
the L Trak for our hidden shower that's
13:54
in the floor so underneath
13:57
this we have a a hidden shower pan uh
14:01
that is draining to a 20g gray tank
14:03
that's on the driver side of the
14:05
van if you opt out for
14:08
the forward step as you enter the van
14:12
you can do an additional 20-gallon on
14:13
the passenger side and use it for your
14:15
gray tank and reclaim the space
14:18
underneath here so underneath here we
14:21
have our gray tank for the uh sink we
14:24
also have our fuse panel it's so easy to
14:29
to get to so you don't have to go to the
14:31
back of the
14:32
van uh you know to replace a fuse it's
14:34
right there U we've also got our shower
14:38
curtain so this is what clicks into the
14:42
L track so you have these L track
14:44
mounts they quickly come up
14:48
here lock into place and so you do four
14:52
take your
14:53
shower the max fan is directly over your
14:56
head so whether you're cooking or taking
14:57
a shower you get all the St steam coming
14:59
out of the
15:03
van and again if you do the under mount
15:05
graywater tank you can reclaim all the
15:08
space under here and uh for this van
15:11
don't think that these things are fixed
15:12
if you want to do a different
15:13
orientation it's no big deal um this
15:16
orientation is just to make sure we
15:18
accommodate the flip and fold seat
15:20
moving on back we have uh this area on
15:24
the right side of the van this is a flex
15:27
space it's designed for a isotherm 85
15:31
drawer fridge or you can see we have a
15:34
porta poot here that we can put on
15:35
drawer slides or it's the perfect size
15:38
for a
15:40
microwave so you can put a microwave in
15:42
there if you want to there's come
15:44
there's two drawers here the bottom
15:46
one's going to hold whatever you want we
15:47
have the induction and the shower head
15:49
and the nozzle they're all on soft Clos
15:54
latches same thing with the top and look
15:57
you have a ton it's it's a big drawer
15:59
you put a ton of silverware in there
16:02
again soft
16:03
clothes positive latches nothing
16:06
rattles over here we've got the isotherm
16:10
Cruise
16:11
130 very big
16:13
fridge it's got the ice ice
16:17
tray stainless steel
16:19
front uh I'm going to hop up here talk
16:22
about the cabinets and that's pretty
16:23
much going to be it for us but run the
16:26
bed frame we have this at uh
16:29
okay we'll talk about that um so the bed
16:33
we have a height of 36 in which is
16:35
pretty good for most mountain bikes you
16:37
can raise this higher and you can raise
16:39
it lower um so it's just really based on
16:42
your preference um up here in the
16:44
ceiling we went with the uh the bamboo
16:48
uh option from Adventure wagon we got
16:50
the max fan
16:52
7500k so we have the remote over there
16:55
speaking of remote let's talk about our
16:57
power system so right now we're working
16:59
with the brand new renig G1 and this is
17:02
the M1 controller so this is going to
17:05
take care of monitoring our
17:08
inverter our shore power and our solar
17:13
so we can go to our inverter and find
17:15
out how that's taken in power when we're
17:17
hooked up to shore power we can go to
17:19
our DC todc charger we can find out how
17:22
much our solar is bringing in we can
17:24
find out when we're driving obviously
17:27
we're not going to be standing up you
17:28
can use the app on your phone but the
17:30
app on the phone is going to allow you
17:33
to just going to pull it up real
17:39
quick it's called the DC it's called the
17:42
DC home app and so it's a mirror image
17:45
of what's up here so whatever you have
17:48
here uh you're going to be able to see
17:52
the device you'll see the solar come in
17:54
when you're driving you'll see the how
17:55
much the alternator's
17:57
charging oh yeah um what's pretty wild
18:02
about this system is when you get to
18:06
uh back up
18:10
here when you get to uh the battery
18:14
specifications uh there's more
18:16
information in this this system will
18:18
give you more information than you could
18:19
ever dream of individual cell voltages
18:23
of every single battery the batteries
18:24
are actually networked together so um if
18:28
you want N Out on that go for it but the
18:30
main reason I wanted this system is it
18:32
actually is is very simple you have one
18:35
screen One battery monitor you know how
18:38
much
18:40
uh how long it's going to take to do a
18:42
full charge with the power coming in
18:44
from solar and your current current
18:47
use last you have three buttons we have
18:49
our interior lights six here we've got
18:53
our overhead cabinet
18:56
lights so when you actually open the
18:58
cabinet up you can the cabinet is lit
19:01
from the inside so it does two things it
19:03
looks really nice at night time you can
19:05
turn the main lights off and just have
19:06
this light on and uh the last switch is
19:10
your outside awning light that amber
19:11
light we showed
19:13
earlier so that's our lights Max vanan
19:16
we just talked about
19:17
7500k individual manual button for the
19:19
inverter I find that's the easiest way
19:21
so you don't have to do your app or the
19:22
phone you just turn it on get to cooking
19:25
and then we have our rasto smart temp
19:27
3.0 that is a Bluetooth controlled
19:30
heater if you're in bed you wake up you
19:32
don't want to move you just go on your
19:33
phone heat the van up on a cold day nice
19:36
and
19:36
comfortable again these cabinets are
19:39
completely
19:40
removable um we'll finish up with the
19:42
domenic RTX 2000 right over the
19:45
bed uh stay nice and cool on those hot
19:48
days and uh I'm going to end with the
19:50
very front of the van I'm going to show
19:51
you that we actually have the Ford
19:53
Raptor Style Grill in the
19:57
front
20:00
so we put these on all of our bands and
20:03
uh looks super
20:06
cool so if you guys are worried about
20:08
not getting the transit Trail this is a
20:10
great option uh this is a true Ford
20:12
product this is from the UK Ford Transit
20:15
Trail over in the UK so this is what
20:18
they have on the van you know Ford's not
20:20
going to change everything on the front
20:21
so this snaps in perfectly and uh works
20:26
great we patter coated the factory
20:28
wheels black they look really awesome we
20:31
have the BF goodw wrench K2
20:34
25576 uh that is the biggest size that
20:37
you can put on here of an over siiz tire
20:39
and not
20:41
rub um last but not least I'm going to
20:43
grab this we're going to go up top look
20:45
at the solar and uh we'll close out this
20:47
little video and actually give you a
20:49
little aerial view of the Expo itself so
20:52
we got a flatline vanco roof rack this
20:54
is the version 1.0 2.0 is the version we
20:57
put on on Thomas's van got two 100 W
21:00
reny panels up front max air fan 220
21:05
watt new power and that's right NE WP
21:09
W solar panel this is specific because
21:13
you can see how tight our tolerances are
21:16
we have that much space for the
21:18
fan solar panel and then right there for
21:22
the
21:22
dedic got all of our mc4 connectors
21:25
cleanly in the
21:27
van appropriate inline fuse for the
21:31
solar and uh yeah here's a a Pano of the
21:37
the
21:40
Expo all right guys and last but not
21:42
least this van is for sale so we've got
21:45
about two more weeks and we're going to
21:46
finish up everything on this van uh but
21:49
if you are interested in this 2020 Ford
21:52
Transit it only has 96 miles on it uh we
21:56
actually trailered it here to the EV
21:58
event to make sure we baby this and
21:59
really took care of it so make sure uh
22:02
you guys check out the link in the
22:03
description below because we're going to
22:05
have a link to all the details about the
22:07
solar the power um uh more details on
22:11
all the stuff that we actually did on
22:12
the walkthrough of this van so if you're
22:14
interested in purchasing this van go
22:17
ahead and reach out to me the link is in
22:19
the uh description below uh also you can
22:22
reach out to me sales Odyssey
22:24
customs.com that's a direct email to me
22:27
and and uh yeah hope you guys enjoyed
22:29
the video and we'll see you in the next
22:32
[Music]
22:47
one
#Campers & RVs
#Custom & Performance Vehicles
#Hybrid & Alternative Vehicles
#Motor Vehicles (By Type)
#Trucks
# Vans & SUVs
