all right hey everyone welcome to the live stream tonight it's a late night
1:08
it's 11 p.m Eastern Standard Time if you guys are watching this live and uh
1:13
it's not the weekend but it is Thursday and we are finally finishing up this floor so
1:20
take a little bit longer expected because I kind of uh I blended in doing
1:25
the electrical when I put the floor in because I needed to conceal it underneath the floor
1:32
um due to the way that we needed to run everything and because there's some
1:38
components such as the wilbasto heater it had a fixed link sheath and I didn't
1:45
want to change that so I moved it up to the middle of the van and then Along Came all the other wires we got our
1:51
middle piece in first uh earlier today we put in the second piece and tonight we're going to finish
1:57
up doing the third piece so that we'll let this sit up overnight and then
2:02
tomorrow we're going to clean everything up sand it down not the whole thing but just the the
2:08
edges I get a nice clean transition we're going to talk about how to do that in
2:14
just a second make clean Transitions and then everything will be prepped tomorrow
2:20
for the lawn sill now I'm not sure if I'm going to do it tomorrow I get some plans uh tomorrow afternoon so
2:28
I'll probably wait till I have a dedicated uh day to do that so I can mix up the epoxy take my time Trace out the
2:35
the floor um so we might do that so not sure what's
2:41
going to happen tomorrow but I know tonight we're putting in this third panel and if you guys have been following
2:47
along with the flooring install uh it's been a fun Journey this is a great binge
2:53
watching videos because we've got I think there's 11 videos now on this floor
2:59
it's not too crazy but I'm hoping that it's going to help you as a diy-er
3:06
see what I've done if you want to improve on some things you're completely welcome to but um
3:12
I kind of keep going back to about the floor being technical because of our in-floor shower pan the flip and fold seat and this tray and those have been
3:20
challenges but I think the biggest one was trying to conceal all the wires in the middle of the floor before
3:26
I put this in because once it goes in it's in Forever it's not coming back out
3:31
let's go ahead and move on to the next part so the back of the van
3:37
has my example of how I'd like to do my floor seams going for because it's a
3:43
bolted seam now I picked up this idea from Humble road if you guys watched his channel on YouTube and
3:49
that is the way to get a nice clean transition because what happens is over time if you just have it glued down
3:57
the boards can kind of move and flex with the van it's not necessarily a bad thing you
4:03
know you don't want things to crack but as they Flex there's a little hump over time that gets created by that the lawn
4:10

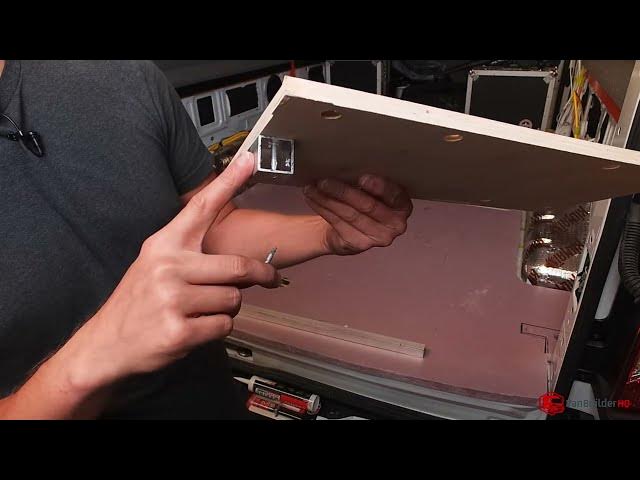

seal or your flooring being flexed so my plan is to have those two pieces
4:16
of one inch aluminum that's embedded in the floor that's going to allow it so that it has
4:23
a nice flush surface to mount to
4:28
and then it also has a sheet metal screw in it that that holds it down so not only do you have the adhesive that is
4:34
pretty much doing all the work the screw is that extra bit of security
4:39
to get to take this side and this side and bring them true to each other
4:45
and then that seam just pretty much vanishes we're going to go A step above and right
4:52
here I just uh this is an example so right here what we have is
5:00
the first thing you want to do is you want to countersink your hole
5:06
let me see if I can get this lighting fixed for you
5:11
I guess you guys want to do this give me one second I will get this uh
5:19
there we go we'll just do this temporary so here is your counters uh
5:25
hold this countersink the countersink bit and then you just want to do it to the
5:31
diameter of the head of the screw just like that
5:36
and so the easy way to do it is just drill down until you have it kind of matches the head of the bolt
5:43
just like that and then when you get there you're pretty much 99 there so once you do it you want to pre-drill
5:50
your hole out so that when the screw goes down in there and it goes to grab the aluminum
5:58
that you're not fighting against the wood you're only going into the metal
6:04
now what I've done is I change this so I went from this
6:10
set up with a self-tapping screw like that
6:16
to a different setup because the fine threads on this
6:23
monitor my lighting here the fine the fine threads on here were
6:29
stripping out so what I did
6:34
is I went and got these right here number 10 inch and a quarter
6:40
so I had two problems they were stripping out and you see the bottom head
6:46
the bottom head was touching the bottom that's pretty obvious but the reason was
6:52
I got too precise and if this went too far down in the hole even like a couple
6:57
millimeters it was going to touch and it's like barely touching
7:04
so I got these screws but there's a difference to these screws
7:13
I just realized I need to find the bag let's see here
7:20
all right there we go I can be ready for when I'm gonna do this okay this is the new screw
7:27
right there so it doesn't have a self tapping end that's okay still designed for Sheet Metal and it
7:34
still has that uh this that tapered head shape
7:40
so we use this screw now to go in our hole and what's going to happen is look it
7:48
it's not going to bottom out and so we're going to keep that one
7:54
but we do have to take a very tiny drill bit so we're using a
8:01
5 64 drill bit it's a little skinny guy right there
8:07
but this drill bit is enough to begin
8:13
cutting our threads in the tip and then because of our aluminum
8:19
is not a very thick piece of the walls are not very thick
8:26
and they're soft this is able to do the job and then create its own threads and since the
8:33
threads are much coarser
8:38
right there since the threads are coarser it's going to grab into that uh
8:44
thinner thinner aluminum better so in hindsight you can do two things
8:49
you can get thicker one inch thicker wall aluminum tubing
8:55
and go with a finer thread or stick with this which you can buy at Lowe's and get a coarser thread which is
9:03
my recommendation so this is what it looks like to create that transition
9:10
and this is just on the sample piece but you can see it's nice and flush and then what we're going to do is we're
9:15
going to we're going to finish it off the only way Nick works here which is
9:21
overdoing it we're going to take some JB Weld five minute epoxy this is the
9:29
one be careful when you buy this the wood is usually marked out and it doesn't say wood there's only one of
9:36
these packs and I think it's the red and it says wood but we're going to take this
9:42
and we're going to put it over this hole we're going to take a metal scraper and
9:48
we're just going to oh sorry we're gonna wipe across it and then let that dry and then we'll
9:54
sand it down so this is like this is super flush because what's going to happen is when we go to do the lawn seal we're going to
10:00
put a 100 pound roller rolling on this and I don't want this to dimple in the epoxy
10:06
I want it to be perfect okay so that's what we're going to do
10:11
we can we can do this anytime I might I probably will do this later but that's
10:17
just my plan so hopefully this little explanation video will help you
10:24
um if you want to plan to do that and last this is uh going to be it says adhered
10:31
to the floor of the van with Loctite PL Marine Fast cure
10:38
so this is pretty much the only thing that you can use to bond
10:43
the metal of the van to the aluminum
10:49
uh the metal part of the van to the foam and then the foam
10:55
to the metal and then metal to the wood it
11:00
it's used for all those applications and this thing is this stuff is impressive
11:06
it's really really really good almost beyond my expectations because if
11:12
I showed you an example here
11:21
the way that this adheres to the foam
11:27
is is really good it almost does like a little bit of a like a melting in the foam you see that
11:34
so this this bond is very see that
11:42
very strong okay back to the video
11:49
let's get the lighting back to where we want it no no no
11:57
there you go okay
12:05
let's see here
12:15
all right looks pretty good
12:21
all right probably won't have anybody on for the live stream tonight but if you guys are on there definitely say hi
12:27
while I'm working or maybe you guys will see this the next day our next step is to go over a couple
12:33
things that we did so over here on the left we modified the floor and we took out we
12:41
cut this out of the wood right here we did that so that our adventure wagon
12:50
um interior trim pieces can fit
12:55
so I'm gonna pick up one really quick and just show you one side so you know what we're talking about
13:01
but this chunk is taken out so that this piece can slide down in
13:10
behind uh down past the wood panel
13:16
now we haven't cut out the foam but I'm gonna do that after the fact
13:22
of course actually on this piece here see here
13:35
yeah we'll cut that out after the fact
13:45
because I don't want to uh cut out too much I'm going to cut it with the uh
13:52
cut it with a razor so next over here on the right hand side
13:57
we've got another piece and so this piece was also cut out this is going to allow us access to our
14:04
fitting for our vent port on the water tank as well as our drain valve port on the
14:15
the water tank so we need to remove that piece of wood and then after we glue this in we'll
14:21
come back and cut this out we'll do it later and then we'll vacuum it out
14:28
um I just I want the wood piece to be my template I don't want to cut that out and just assume that's
14:33
that's where I traced it even though it's extremely close okay so next
14:39
we have these two pieces so this these are three bolts they go
14:45
through the floor of the van and these bolts right here
14:52
they have these uh Chrome spacers so these spacers go on bolts like this
15:00
and they allow it to be compressed without smushing the foam and the floor and then what I've done up here up top
15:06
is they don't make a spacer thinner than a quarter of an inch
15:12
so we have three washers that are making up that difference and then when everything is compressed
15:18
it's going to be perfectly flush with the floor and with these two are designed to do is
15:27
this will go in the Flatline vanco pull out tray these keep it from going front to back
15:34
that's their job the four behind there job is to make sure that when the full
15:42
extension drawer slides out that the whole thing doesn't pull out of the van and these are all grade eight bolts
15:50
and they are through the van chassis so extremely strong
15:56
and it's going to be the strongest way to install this pull out tray
16:03
so we're not bolting it into the floor we're bolt that into the van itself so
16:09
extremely strong those back there if you guys haven't watched the past streams they have two
16:16
pieces of aluminum they're about this wide so it expands across all the
16:23
corrugations in the van and it's just extremely strong uh connection
16:31
we just got these little pieces of tape here they'll live there forever but these little pieces of tape
16:37
their design so that this doesn't get shifted when I put the
16:42
floor down I want it to be exactly where it right where it is
16:48
next we are going to
16:53
next is uh pretty much gluing so I've already taken the the belief blower
16:59
blowed everything off of here it's nice and clean
17:05
my automatic gun from Milwaukee broke
17:11
during the last live stream and
17:18
so if you guys know of this uh this gun doing what it did here
17:23
let me know because I'm pretty good at operating tools
17:29
and for some reason it worked for a while and then somehow it gets it catches on the inside somehow
17:37
I don't know if it's because of these tubes I've never had a problem with any other tube but
17:44
I feel like maybe it's the the viscosity the thickness of this stuff is
17:50
not good for that gun so we are back to our
17:56
tried and true hand gun
18:03
uh or caulk caulk gun
18:09
all right so next we are going to
18:21
uh we'll start I'm gonna go ahead and get this out
18:26
now if you guys watch the past the other live streams we we mentioned that
18:32
we want very thin beads when we when we put this down
18:39
uh so we're just going to do a very thin bead on this back lip here
18:47
just where this seam transition is so it is very thin
19:13
and then we just need to put some on our aluminum that's going to go up underneath the
19:19
screws and so now we're just going to go back and forth
19:25
doing our thin beads and we want the thinness so that we
19:31
don't have any raised areas in the floor because the raised areas mixed with air
19:39
space can possibly make a soft spot and then also make noise we don't want that
19:46
you want these floors that we make and installed to be silent
20:07
and I was using the Milwaukee caulk gun and that it was doing a good job
20:15
but I also couldn't get it to make a fine bead like this
20:20
for some reason it kept uh I didn't like doing this
20:27
I turned the speed down it still didn't change it
20:34
that's okay we're on we're using the old school method still
20:39
our original method
20:51
now sometimes there's these uh like these blobs that come out and you'll need to take a scraper and get them up
20:58
uh they're they're like a dried piece inside the tube so again I don't know if that's like
21:04
Lowe's quality yeah I mean these have been on the Shelf too long or something like that
21:10
um you can kind of see I got even
21:18
it's even coming out and then all of a sudden it changes
21:43
yeah so very very thin caulking lines
21:49
so thin as you can see it's almost not connecting to itself when it comes out
21:58
that's what we're looking for the caulk
22:03
gun that we had or when we caulked the bottom
22:08
that needed to be thick because it was helping with the leveling of the floor initially
22:16
because believe it or not the Ford van is not level on the inside and not in a level
22:23
it actually has some time it has like a crown to it so this has like a crown
22:29
so you got to be careful about that
22:34
it looks pretty good
22:41
don't leave off these joints right here
22:47
all right coming to the back
22:54
I'll need to change up my tube here in just a second
23:03
now you do have 30 minutes to work with this stuff so
23:11
you don't have to rush but I would still kind of be in a slight rush just in case something happens you
23:18
had to I don't know what you have to do
23:25
something phone bathroom something like that
23:35
don't get distracted how about that
23:51
[Music]
24:09
foreign
24:43
over here and the board looks like there's green paint on it it is green
24:48
paint but that paint it's just a cheap outdoor paint that I
24:54
got um at Lowe's and what I mean cheap is it was on clearance because it was somebody
25:00
it's a good exterior paint That's mold resistant but somebody just didn't like the color
25:07
or something like that and they just put it on the shelf so you can get it for half price if you
25:13
find that if somebody just didn't want it so I got it for 15 bucks
25:22
the most important paint that we're put on here is the bonding primer
25:27
so the bonding primer is going to be
25:35
what we put on tomorrow and that stuff is important
26:22
you kind of see I'm having to kind of force it on here like smush it because it doesn't want to stick
26:49
the hole that I'm passing right now that was is the whole access for our spare
26:55
tire so we don't need it anymore but I access that so that I could uh
27:03
pull up the cable that was holding the old spare tire the new spare tire does not fit because
27:10
it's oversized so that was uh that's just one thing we did
27:18
and put a little bit extra here on this end this tail
27:25
I'm sure we get a good seal on the end of the van and that one we're gonna just put a
27:31
little bit more here on this tail
27:38
okay go through make sure we didn't miss anything I'm gonna make sure we put a little bit
27:44
around this washer just like that that way when we squeeze it down
27:52
make sure it gets in place or stays in place
27:58
throughout the life of the van all right and then now it's time to
28:05
double check so we want to go through make sure there's no Gap you know more
28:11
than an inch that doesn't have a
28:18
adhesive on it um let's see here let's get that
28:27
okay so clock is ticking now so we need to take our
28:35
squeegee which uh where's it here we go
28:42
you need to make sure we knock down any of these high areas so like this one
28:48
this one this one right here is a little too high
28:54
that one yeah let's look around
28:59
these over here anything that got a little a little too high when you were
29:07
talking everything needs to be nice and low
29:15
all right this looks excellent perfect
29:20
let me just scrape it out of the way all right now let's go get our piece of wood
29:48
now it's good to practice on how you get this in the van
29:53
before you get it in the van and I've done it a couple of times so there's a
29:58
couple different ways but I need to try and Float this before it comes down so just like that
30:05
on this back side and I'm gonna do the back side first
30:11
and then let it fall down and then I have alignment marks
30:17
that I need to follow and then as soon as I have them
30:23
good my next priority is these two holes right here I need to make sure they are absolutely
30:29
perfect so go ahead and grab your bolts
30:40
and that is a great sound perfect
30:45
so we'll just give it a good push back
30:56
that looks good
31:03
we're good to go there
31:11
I'm just going to check them with the van to see if they're uh crooked at all and they come out
31:18
and they're good okay so on the floor is in
31:23
now we can walk on it we're going to bring our Tools in so we can go ahead and start drilling our holes up there
31:31
so we need our drill drill aluminum countersink
31:38
bit and we need our number 10 inch and a quarter
31:46
screws and we need five of them
31:54
all right so now we can walk on it
32:06
oh
32:12
just want to make sure we got this it's far forward
32:18
as we can
32:39
okay now you can walk on it
33:08
okay so let's again make sure we didn't move it
33:19
so first we're going to take the piece of aluminum I'm going to lay it down
33:24
and just for a visual reference we're going to get our our line
33:32
and this is just so we don't do something dumb and countersink you know on the edge of the
33:39
piece of aluminum it's a good thing to do when you're working late at night you know
33:47
and then just as a double check to ourselves we need to make sure we come through
33:52
and we're just going to put a little dot in the center where we want to
33:57
screw down this uh piece of wood
34:02
so I can't do it here because when I was cutting this I was going to remove this piece but
34:09
instead I decided to leave it and I wasn't watching my mark So I cut into
34:15
the about right there this is going to be fine it's going to be glued down but I need to back up the screw
34:21
right there all right next let's go ahead and
34:28
get our countersink remember the screw is your guide for countersinking
34:42
it's going to tell you how big to make it that one's perfect
34:53
this is just going through the top of the aluminum not the van [Music]
35:04
once that's done we can get our
35:09
Phillips
35:25
and you want your drill on a high torque setting
35:31
you want to stay straight up and remember it's cutting through the aluminum so just be prepared
35:40
and then as soon as you fill the board clamp down stop don't strip out the screw through the aluminum
35:46
[Music] all right that feels good
35:54
for the next one
36:25
thank you foreign
36:43
I know I need more than one drill but my the wall the other one
36:49
uh it's not working so
37:09
yeah as soon as you see that just kind of sink just a little bit make sure you stop
37:35
oh foreign
37:48
[Applause] [Music]
38:25
and on top of what we're doing to get this nice and flush we're going to put a
38:30
piece of board down here and put a lot of weight on this joint so the glue in these middle parts pushes out
38:38
we could have drill more but um it's it's really not that big of a deal
38:48
we're putting 10 screws in it so I think if you doubled it up I think that'd be a little crazy
38:55
this is for most people don't do this so
39:39
[Music]
39:50
oh
40:02
my God foreign
40:13
last one
40:37
all right
40:45
so I think what I'm gonna do that did lift this edge up right here
40:51
so I'm going to carefully do one really close to the edge
40:57
so right here and hopefully [Music]
41:07
hopefully that's going to grab into the aluminum because I didn't
41:17
because the aluminum is not I didn't extend it all the way out
41:22
because I don't want I never want any sharp edges potentially touching Electronics so
41:34
okay that's good we did hit it excellent
42:02
awesome nice and flush very strong perfect perfect perfect
42:10
this put a little bit of extra pressure here get that
42:15
glue squeeze from these middle pieces
42:24
perfect that's awesome
42:31
yeah so really after we sand this or put the epoxy on it and sand it it's gonna be awesome it's gonna be super
42:39
it's already very flush
42:45
all right do we have any questions are people watching not really it's late
42:55
that's okay we will talk to you guys very soon all right let me turn the light down on
43:01
here just a little bit there you go well you guys can see
43:07
see the floor here uh we did a great job so
43:12
we are going to let this floor just do its thing dry up
43:18
we're going to come by tomorrow we may we may uh Trace out some
43:25
stuff but we'll do I'm gonna put the weight on here tonight and then we'll come back tomorrow and do
43:31
the epoxy so I'm going to show you how I transfer the weight on this
43:37
especially this this middle seam even though we have the glue we really want to make sure that
43:43
we have a lot of weight on there
44:12
so I'm gonna put this on here
44:20
and you guys can guess in the comments what is in these boxes
44:27
I need my other piece of wood I have a wider piece somewhere
44:39
all right
45:00
actually I'm gonna come back to that one I need to
45:06
get the tire yes I have a spare tire for the van is part of the
45:15
floor procedure here
45:42
thank you
46:12
foreign
47:32
okay now I can put on this one this middle piece
48:32
foreign
48:51
guys that is it for the live stream hope you enjoyed this video hope it was
48:57
helpful if you guys are learning how to put in your own flooring system
49:03
um yeah that's pretty much what it takes so uh
49:08
and it's a little bit more uh complicated as far as I mean complex
49:14
as far as uh you know the step-by-step it's not a just buy it and install it type of thing
49:20
this is designed for the dir that's looking to save money and do it yourself
49:26
put their own flooring system in and if you guys haven't watched the other live streams and this is the first
49:32
one you're seeing the template that I got was from AVC rig
49:37
they're in our Colorado or Evergreen Colorado uh Adventure van Expo coverage
49:45
um so you get an interview with them and instead of buying their high-end
49:50
pre-insulated pre-cut flooring system you can buy the template which is the
49:57
exact same template that they're mapping to cut that but you can just get the paper and cut out your own wood Source
50:04
your own wood locally same as insulation and so that was what this video was about it was showing you
50:11
that process and um what you can do and the reason I chose
50:17
this one in this van not only to make this video but it was because I'm removing a lot of material from the
50:22
floor so I cut a lot of ports out here I cut a lot of stuff for the battery the basto heater the shower floor pan the
50:30
flip and fold seat the steps and that's a lot of material removed so if you're going to buy a one and done floor system
50:38
you probably want to keep all that intact and use most of the floor uh you know I'm probably cut out as much
50:44
wood as one whole panel for the stuff that we're putting this van so it just made sense that this would be a better
50:50
option to go it's a little more work but I got to customize the cable tray under
50:57
the floor and that was really nice I didn't have to find some way to pull everything through the walls
51:04
um I did use one cavity that Venture wagon makes a little bit larger so you can pull wires through
51:11
but all in all this is pretty much it from here we'll go to the next part of
51:16
this series which is putting in the lawn seal now there's many types of flooring that you can put in this you can put a
51:22
click click in flooring or like the Click lock flooring you'd like to have something waterproof
51:28
if you're if you're going to do that just so that you don't have a leak in the van or you spill something and it
51:33
gets to this wood uh if you do anticipate doing something like that you'll want to make sure that
51:41
you seal this wood tomorrow we're actually going to be sealing this wood with an epoxy
51:49
um kind of like an adhesion promoter type thing it's designed so that the wood can
51:54
mate to the epoxy better so we'll be doing that tomorrow so look forward to that
52:01
but yeah you can put any flooring system really that you want you can go really high-end like the two Tech Two flooring that's pretty uh popular but I've
52:08
already purchased the black coin lawn sill so it's pretty standard that's
52:13
what's going in this van it's going to kind of keep the theme of like black bamboo gray dark gray kind of theme that we
52:20
have in the van uh so we've got good lighting but like nice nice dark colors
52:27
and uh yeah so hope you guys check out the live stream tomorrow uh make sure
52:33
that you're subscribed to the channel like this video If you enjoyed it if you think this will be helpful for somebody you know share that to them give them
52:39
the link to this video uh it helped them with their van build install I'll do a
52:44
quick plug for the DIY van build cheat sheet if you guys are looking for an easy way to save time and money with
52:52
your van build check out the DIY van build cheat sheet it's completely free
52:57
and it's essentially an Excel sheet of all the products that I've used over the last three years both electrical Fasteners insulation Roofing solar and
53:05
what I really like is the tools so this has all the Amazon links it also
53:11
helps support the channel so we really appreciate it and yeah it's just a One-Stop shop to check out stuff stuff
53:17
that I've personally bought you don't have to worry about it you know vetting the products and stuff like that so
53:24
it's a good list and guess what it's completely free put your name and email address click download it's going to
53:29
come straight to your inbox and uh yeah so check it out but once
53:35
again guys I really appreciate if you guys have stayed all the way to the end of this live stream check out the other videos we have we've got really popular
53:41
videos when we go to do uh coverage of the adventure van Expos there's a lot of interviews with
53:47
um the vendors there you get to see a ton of cool products uh get to really immerse yourself in some different van
53:53
designs uh kind of brainstorm if you haven't decided on kind of your layout or van build what you want to do those
54:01
videos are awesome uh the Bend Oregon video is crushing it it's doing really really well so thanks so much again
54:08
everyone that is subscribe checking the channel out I'd love to hear your comments uh suggestions for future
54:14
videos and uh we're gonna sign off here and we will see you guys in tomorrow's live stream
54:23
[Music]
54:30
thank you
#Flooring
#Home Improvement
