Van Builder HQ is Live! Marine Slam Latch Locking Bracket Install
285 views
May 3, 2025
Have questions? Ask in the Chat! Don't forget to check out Odyssey Custom Vans latest build currently For Sale here: https://www.odysseycustomvans.com/ Whenever you’re ready, there are 2 ways we can help you: 1. If you need a vetted parts list, download our → FREE DIY Van Build Cheatsheet to help you save time and money on Van Parts and Gear: CLICK HERE: https://vanbuilderhq.com/ 2. If you want to get Done-For-You Van Build help, book a → FREE Consultation with my Calendly Link: CLICK HERE: https://calendly.com/odysseycustomvans/intro-call
View Video Transcript
0:01
[Music]
1:47
all right guys welcome back to the live
1:50
stream real quick I'm just going to make
1:53
a uh this video should take no more than
1:55
maybe 5 10 minutes uh we're going to go
1:57
over the kitchen galy locking mechanism
2:00
for the slam latches so I'm going to pan
2:03
the camera down I just put it up here so
2:05
you can see the orientation so we're
2:08
actually inside the kitchen Galley right
2:11
here um and we're going to focus on this
2:15
slam latch that you can actually see so
2:18
I didn't put this one in uh it was just
2:21
laying on the desk so I got to put it in
2:24
before I put the countertop on because
2:27
it's going to be really it'll be
2:29
possible to pretty much get to it after
2:31
that so let me show you what I'm talking
2:34
about all right I'm going to hop in the
2:41
van and we're going to be talking about
2:43
this is the slam
2:46
latch then we have
2:49
our
2:51
um let me get the other piece here we
2:53
got one more piece we got to grab
3:00
so I'm showing you how to M Mount
3:03
the
3:04
Locking clasp or however you want to
3:08
call it it's pretty much the part that
3:10
the slam latch connects to or latches on
3:14
to
3:47
okay so what we have here
3:49
is uh this is a piece of Baltic Birch uh
3:52
about 1 in by 3 in and we have our latch
3:57
attached to
3:58
here uh well not not the latch but this
4:00
is the part that it locks into so if you
4:03
take apart and disassemble your slam
4:06
latches first off the slam lat slam
4:10
latch looks like this
4:13
you open this
4:15
up depresses this so it can actually
4:18
lock
4:19
into this piece so they call it a slam
4:22
latch because when you slam it in there
4:25
it jumps over this and then this is
4:28
actually needs to be mounted to where it
4:30
catches if you mount it offset like that
4:34
then the drawer is going to Rattle so
4:36
you want to make sure that when you
4:39
adjust the these screws right here you
4:42
do it in a way that this is going
4:45
to firmly catch that latch when it
4:49
slams so that's the first thing you got
4:51
to get right and you have to get that
4:52
right when you actually make the
4:54
drawer so right here uh but what we're
4:58
doing right now is the
5:00
final part of this and we're
5:04
taking this
5:06
piece and we're just kind of coming
5:08
under
5:09
here and we're
5:12
finding a low enough position to where
5:15
that it doesn't interfere with the latch
5:18
but it's low enough to where there's
5:20
enough meat so that when we actually
5:23
open the drawer and slam it that we have
5:26
a nice uh positive
5:33
closure so I feel it kind of rubbing
5:36
just a little bit so I'm going to make
5:37
an adjustment to the screws really quick
6:11
okay coming back in the
6:14
van all right so this is the one that
6:16
actually already adjusted so let's take
6:19
a look at
6:24
it okay so that one you can see
6:30
got a really
6:32
good closure on
6:46
it and so I'll just show you this one
6:48
for example so this is the
6:50
orientation so if we need to tighten
6:53
this up uh we're going to move this
6:56
forward
7:00
and it's really good to use Baltic Birch
7:01
because this is it's a very very
7:04
hard
7:07
uh piece of material and you need that
7:09
hardness because if you're going to set
7:13
these screws in here they need to really
7:16
not move over
7:19
time um so right
7:23
there okay so that feels really good so
7:27
we'll
7:29
okay so now we don't have any
7:32
Rattle and that adjustment that's what's
7:35
going to either make your drawers rattle
7:36
with the Marine slam latches or
7:39
not I know my head's right in your
7:44
way okay so once we get this into
7:48
place and we know where um everything is
7:53
going you can mark this um with a pencil
7:57
so that when you take this off
8:00
and we're going to put wood glue on it
8:01
because we actually are going to do a
8:04
final install really
8:12
quick okay for this particular scenario
8:17
we don't want to do this we actually
8:19
want to evenly distribute
8:22
the uh wood glue around
8:25
here um because we need to make sure
8:28
that this uh
8:30
we've got good a good coating and this
8:33
does not move at
8:40
all and we're going to set the we're
8:43
setting the
8:44
height we can technically get back in
8:46
here and tighten these up or adjust
8:49
these later as time goes
8:51
on but really what what you want to do
8:55
is you want
8:57
to this needs to be the final ins
8:59
install so you want to get it as dialed
9:00
in as you possibly
9:07
can so we're making sure that we right
9:10
in the middle and we're not too low not
9:13
too
9:16
high and right there so we're going to
9:18
set it right
9:19
there and then if you have wood glue
9:21
push this really hard and then it kind
9:23
of gives it like a suction and then you
9:26
can fine tune
9:32
uh where you want this to
9:35
sit and then once you're happy where
9:37
it's
9:41

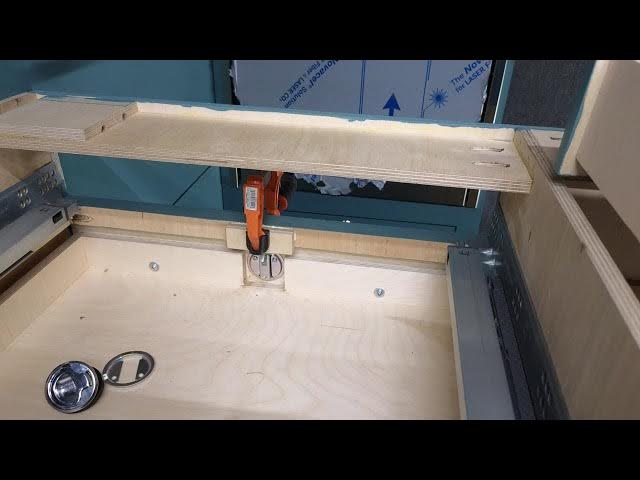

at we're going to get a clamp and then
9:44
we're going to uh pin nail
9:47
it with four pin
9:54
nails now when you do this it's it is
9:56
it's going to move it again so
10:07
yeah this way you can
10:10
really dial in the
10:15
uh where you want this to
10:20
be and we're using uh three 23
10:25
gauge um this is 23 gauge
10:30
think I switched over to one
10:46
inch now this is a pro tip I'm putting a
10:49
piece of wood behind
10:50
here
10:52
because every now and then this uh these
10:56
pin nailers are
11:00
they're very
11:02
dangerous they say that they they've got
11:05
a safety trigger but it's
11:07
not
11:11
uh what am I trying to
11:14
say it's it's not 100% safe let's just
11:17
say that from
11:26
experience and the last thing I want is
11:29
one of these pin nails to
11:30
go past me and into the isotherm Cruise
11:34
130
11:46
so and we just need we just need four of
11:49
these
11:59
and that'll be enough
12:01
to hold that in place until the wood
12:04
glue
12:08
cures um so we can go ahead
12:11
and undo
12:15
this wipe off our X excess
12:24
glue and just in
12:27
case we really messed up we can actually
12:30
test our
12:31
drawer and there's still time to pry it
12:35
off if we needed to if we messed up that
12:40
bad right now this thing is perfect so
12:43
you can
12:43
see I'm moving the
12:46
drawer there's no
12:54
rattle okay and so this is my tester
12:57
piece so I'm going to keep this just for
12:59
a future reference um this just lets me
13:01
know how I have this set up with a/ in
13:04
piece of piece of wood so I'll keep this
13:07
on hand but pretty
13:09
much all of the latches in this van are
13:12
like this with the exception of the one
13:13
underneath the fridge stack which had to
13:16
be fabricated a different
13:20
way but that is just a little
13:24
quick overview
13:26
of how to make this bracket I think
13:29
there's a lot of people that this will
13:32
help because this seems to
13:35
be it's a nice the slim latches are nice
13:38
but it's they're kind of quirky as far
13:40
as how they get mounted so hopefully
13:43
this helped out hope you guys enjoy this
13:45
video make sure you get subscribed turn
13:48
that notification Bell and I will see
13:50
you guys in the next live stream
